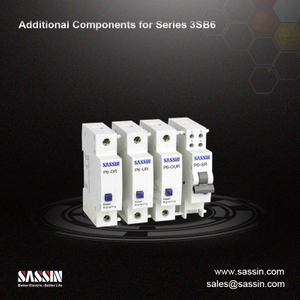

P6-E, pushbuttons and indicators

● The pushbuttons are used for remote control in every kind of electric installation.
● The indicator lamps signal any event in every kind of electric installation.
● P6-E may match with MCB series 3SB6-63.
Availability:
Inquire Add to Basket

Technical specifications

  • Standard: IEC 60947-5-1

  • Rated voltage Ue (V): 230

  • Rated current In (A): 6

  • Conventional glowing current (A): 16

  • Frequency (Hz): 50/60

  • Modules (18 mm): 1

  • Utilization category: AC14, DC13

  • Degree of protection: IP20, with connected conductors

  • Conductor cross-sections

  • Solid and stranded (mm²): 1-10

  • Finely stranded with end sleeve (mm²): 1-4

  • Terminal tightening torque (N·m): 0.5

  • Ambient temperature (°C): -5 ~ +40, max. 95% humidity

  • Storage temperature (°C): -40 ~ +75

  • Connection Capacity (mm²): 1-16
