3SB71P & 3SB71D & 3SB71PD

Independent power supply with build-in power source,directly draws power from the incoming end to avoid the risk of protection function failure caused by external power supply failure.

● Overload protection
● Short circuit protection
● Isolation
● Controlling
● Used in residential building, non-residential building, industry, energy and infrastructure
Availability:

Functions

●   The pushbuttons are used for remote control in every kind of electric installation.

●   The indicator lamps signal any event in every kind of electric installation.

●   3SB71P, 3SB71D, 3SB71PD may match with MCB series 3SB71-63


Technical specifications

●   Standard: IEC 60947-5-1

●   Rated voltage Ue (V): 230

●   Rated current In (A): 6

●   Conventional glowing current (A): 16

●   Frequency (Hz): 50/60

●   Modules (18mm): 1

●   Utilization category: AC14, DC13

●   Degree of protection: IP20, with connected conductors

●   Conductor cross-sections

●   Solid and stranded (mm²): 1-10

●   Finely stranded with end sleeve (mm²): 1-4

●   Terminal tightening torque (N·m): 0.5

●   Ambient temperature (°C): -5 ~ +40, max. 95% humidity

●   Storage temperature (°C): -40 ~ +75

●   Connection capacity (mm²): 1-16

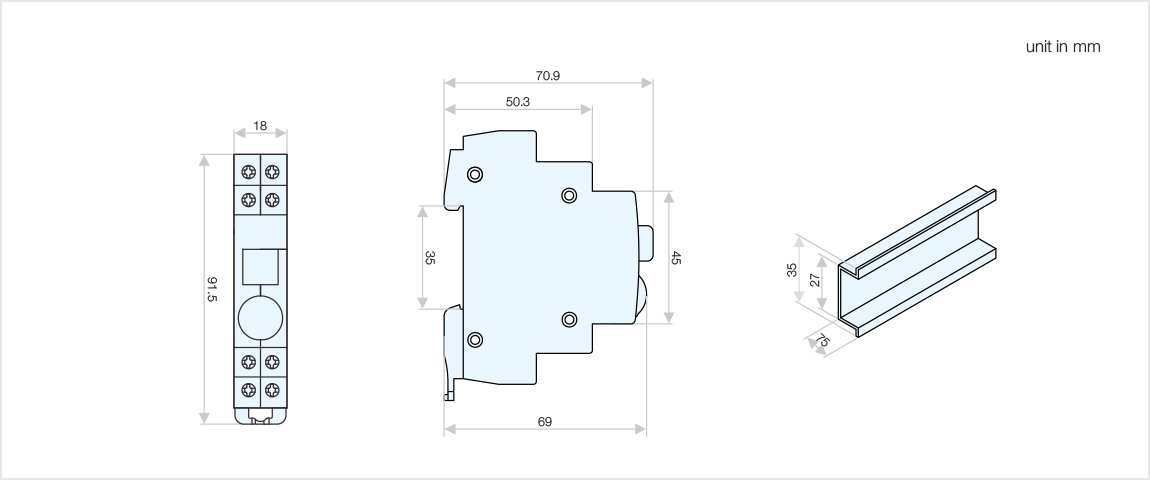

Outline and installation dimensions

3SB71P-&3SB71D-&3SB71PD.1


Selection and ordering data

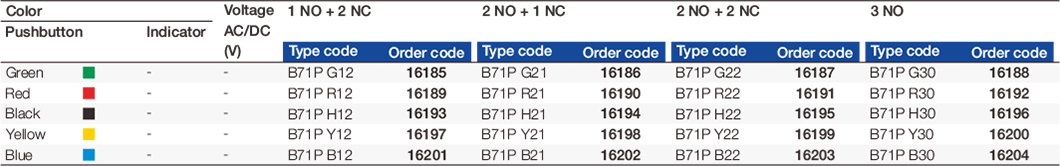

3SB71P Pushbutton

3SB71P-&3SB71D-&3SB71PD.2

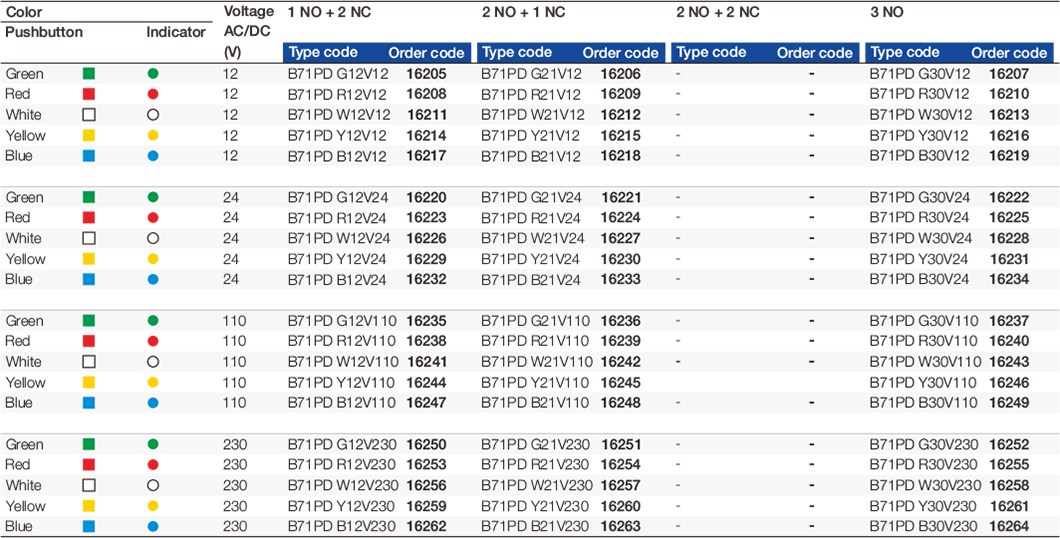

3SB71PD Pushbutton + Indicator

3SB71P-&3SB71D-&3SB71PD.3


3SB71D Indicator

3SB71P-&3SB71D-&3SB71PD.4
