MS71, modular sockets

Independent power supply with build-in power source,directly draws power from the incoming end to avoid the risk of protection function failure caused by external power supply failure.

● Overload protection
● Short circuit protection
● Isolation
● Controlling
● Used in residential building, non-residential building, industry, energy and infrastructure
Availability:

Functions

●   Widely used in terminal distribution system

●   Being complete series of terminal distribution system together with series 3SB71


Technical specifications

●   Standard: IEC 60884-1

●   Rated current (A): 16

●   Modules: 2.5

●   Rated voltage Ue (V): 230/400

●   Conductor cross-sections

●   Solid and stranded (mm²): 0.75-35

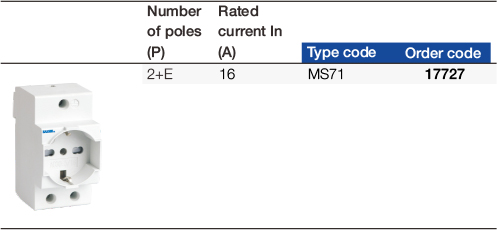

Selection and ordering data

MS71.1

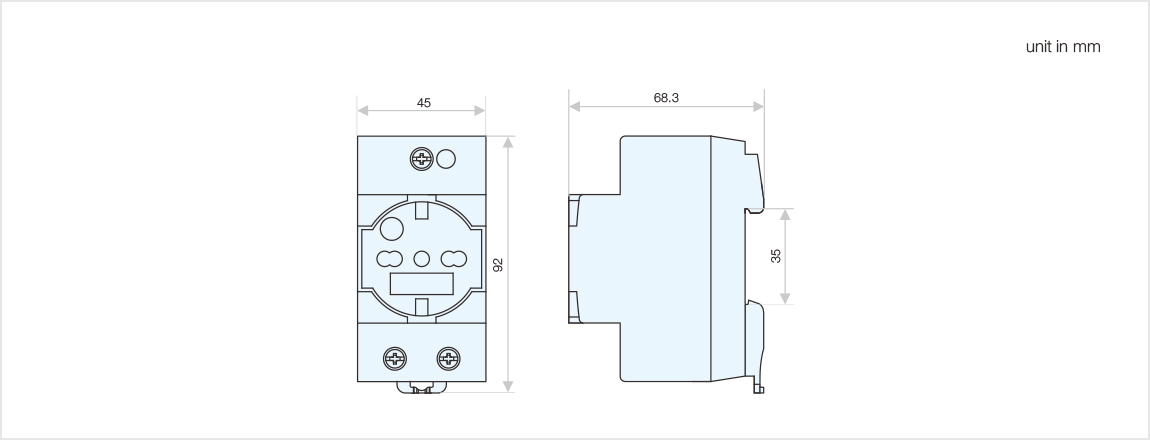

Outline and installation dimensions

MS71.2
