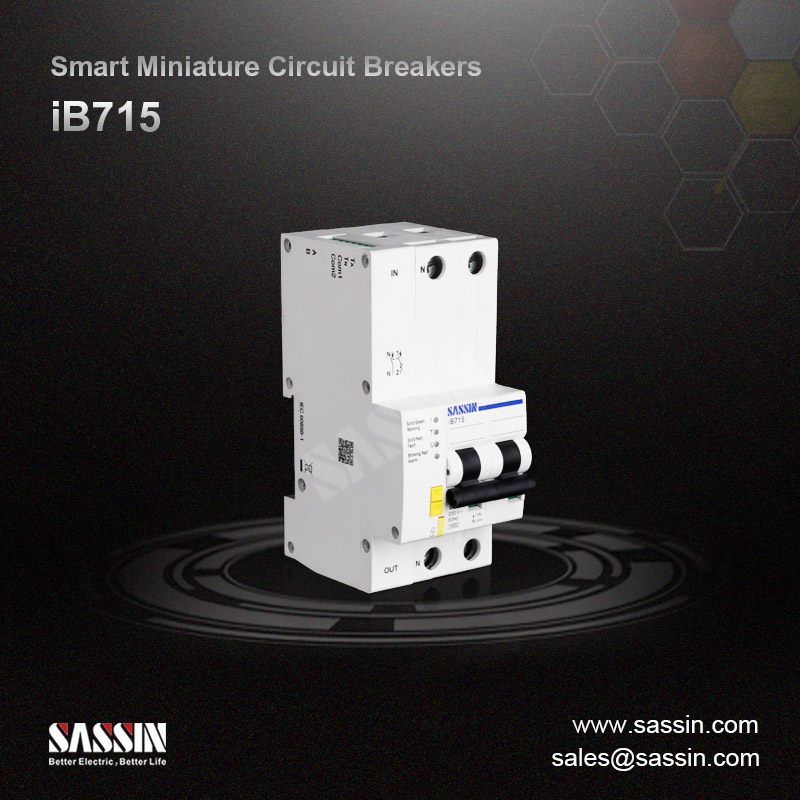

iB700 Smart Miniature Circuit Breakers

iB700 series smart miniature circuit breakers are newly developed smart electric product which is with functions of overcurrent protection, short-time delayed short-circuit protection, short-circuit instantaneous protection, under-voltage and over-voltage protection, phase-failure protection (three phase) and auto-reclosing.
Availability:
Inquire Add to Basket

Standard

  • IEC 60898-1



Application


  • Suitable for single phase, three phase three line and three phase four line low voltage power distribution system which neutral poiont grouding directly (TT), to protect the circuits and electric equipment against overcurrent, short-circuit, under-voltage and over-voltage, over temperature and phase failure (three phase).

  • The smart switches can be operated by manual in local, or remotely if a smart gateway is applied.

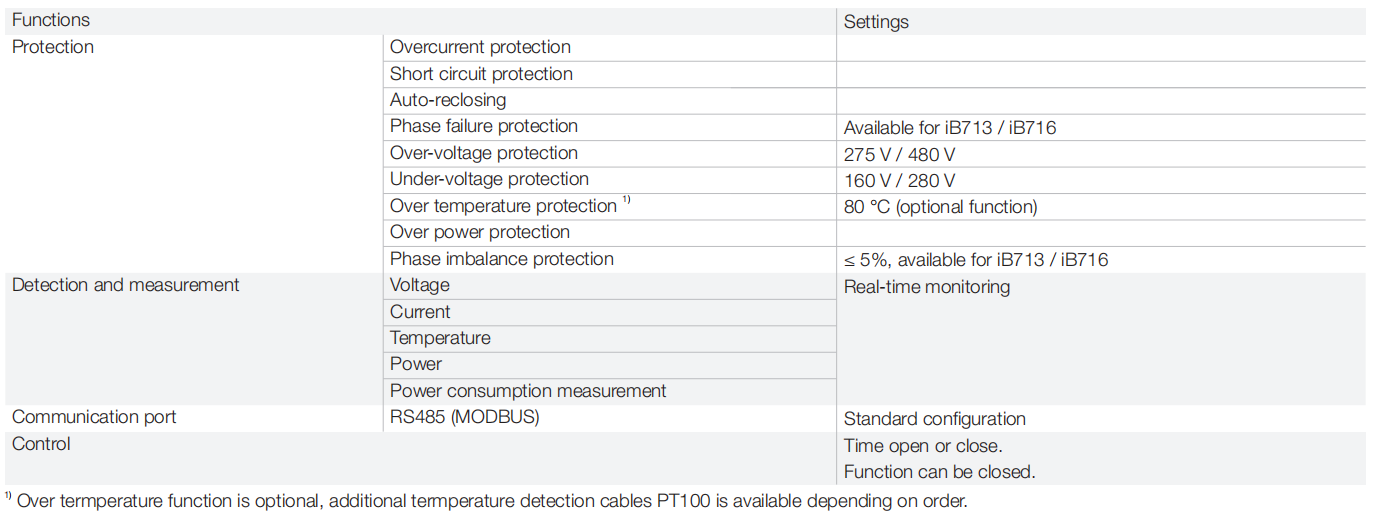

Functions

V 27.7 Smart Electricity 20210302_24-2

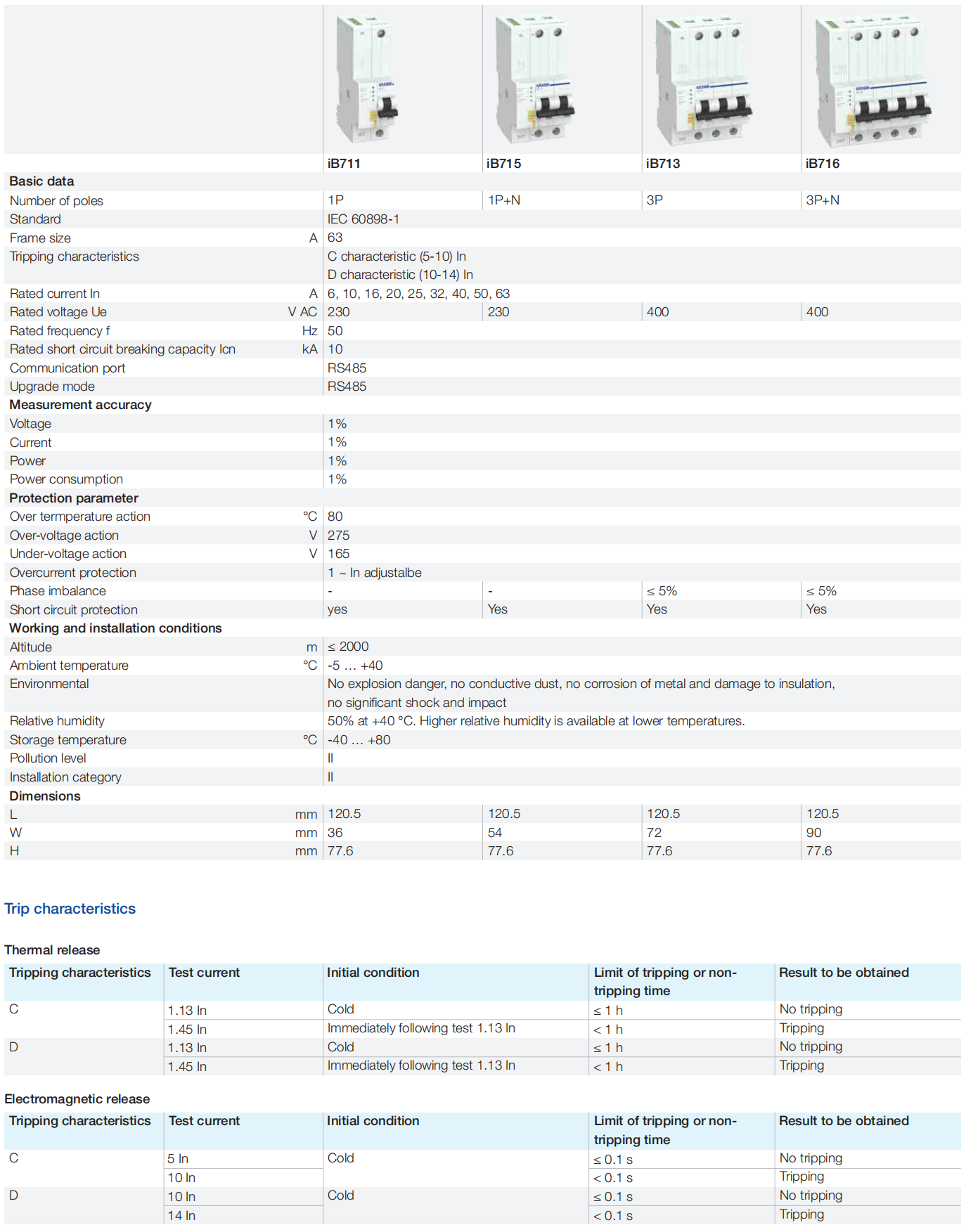

Technical specifications

V 27.7 Smart Electricity 20210302_25-3
