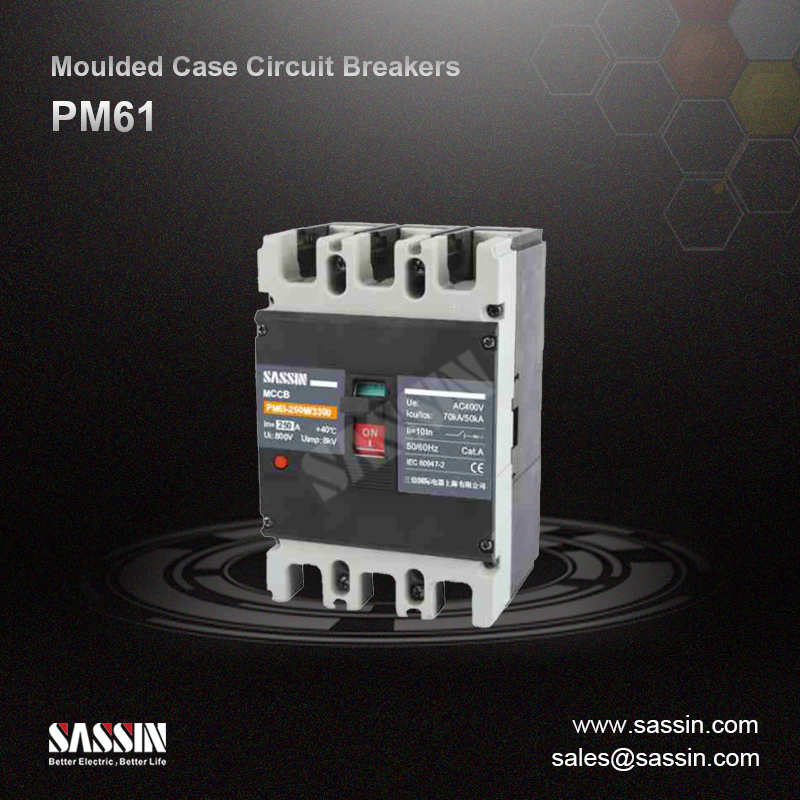

PM61, MCCBs with thermal magnetic trip units

Independent power supply with build-in power source,directly draws power from the incoming end to avoid the risk of protection function failure caused by external power supply failure.

● Overload protection
● Short circuit protection
● Isolation
● Controlling
● Used in residential building, non-residential building, industry, energy and infrastructure
Availability:

Product profile

●   s


Breaking capacity

Frame

size


Rated frame

current


Rated ultimate short-circuit breaking capacity

Icu


35kA

50kA

65kA

70kA

75kA

PM6100

63 A D G


PM6101 100 A D G
L
PM6102 250 A D G
L
PM6104 400 A D GG
L
PM6106 630 A D

L
PM6108 800 A

H
M


Conditions of normal use and the installation

●

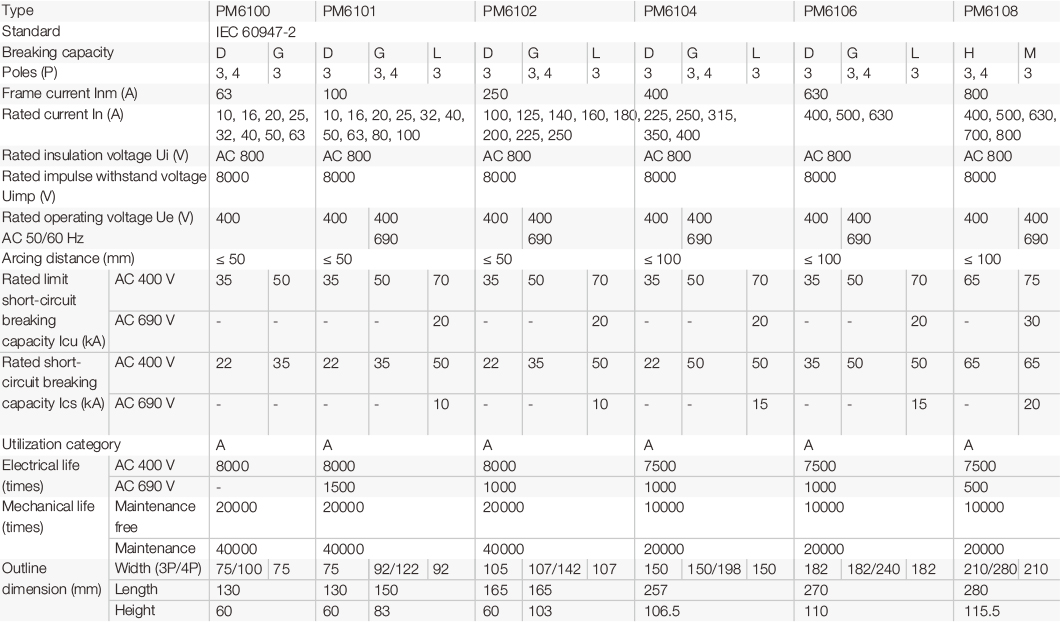

Main technical specifications

PM61.2


Notes: The term "lifetime" according to IEC 60947-1 indicates the probability of the number of operating cycles that an appliance completes before repairing or replacing a component.


Tripping Characteristics

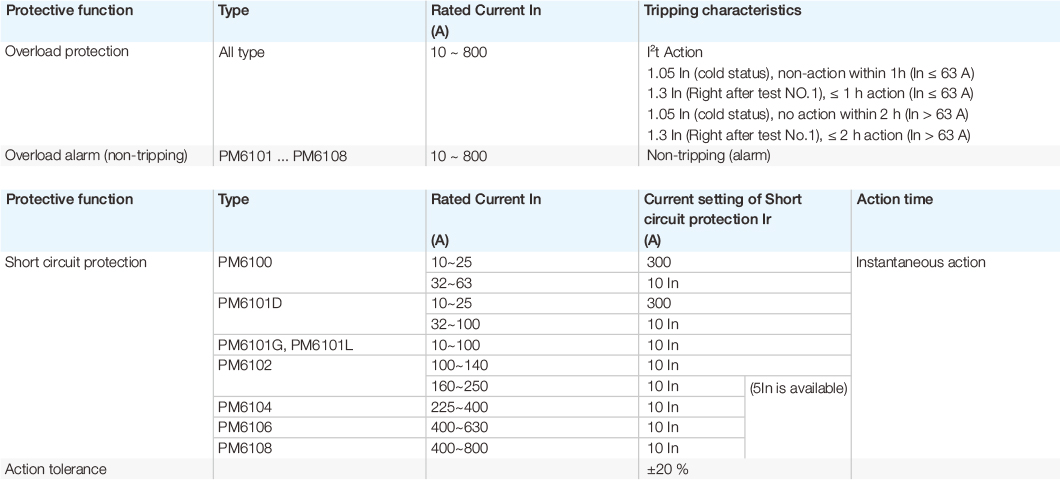

Protection characteristics for power distribution

PM61.3


Tripping Characteristics

Protection characteristics for power distribution

PM61.4

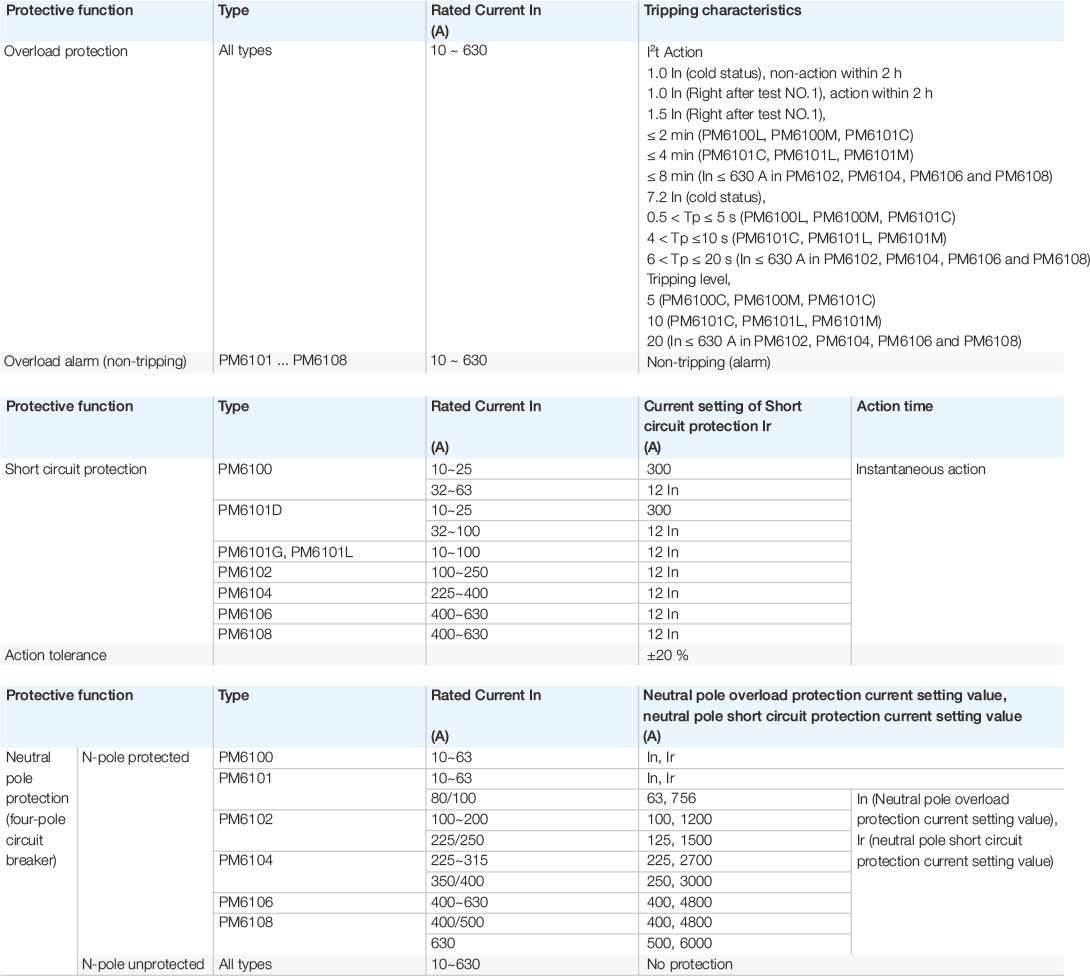

Protection characteristics for motor protection

PM61.5

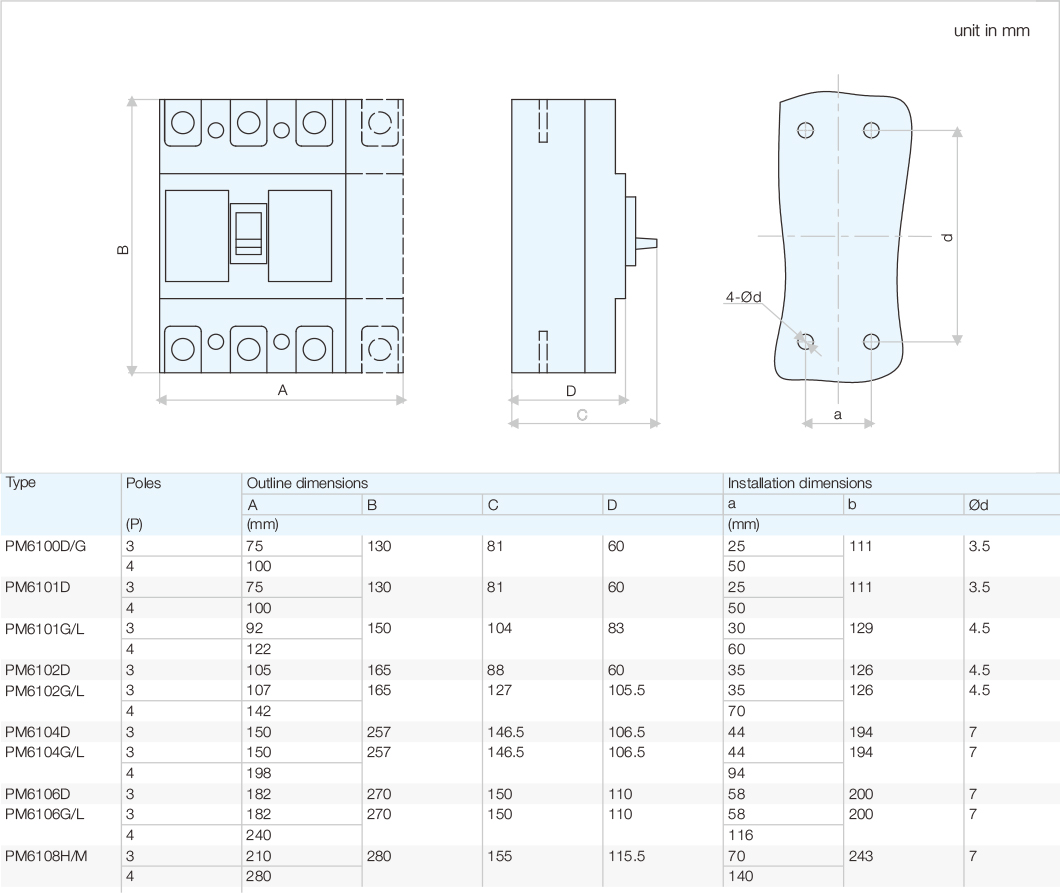

Outline and installation dimensions

PM61.6


Selection and ordering data

3-pole

PM61.7

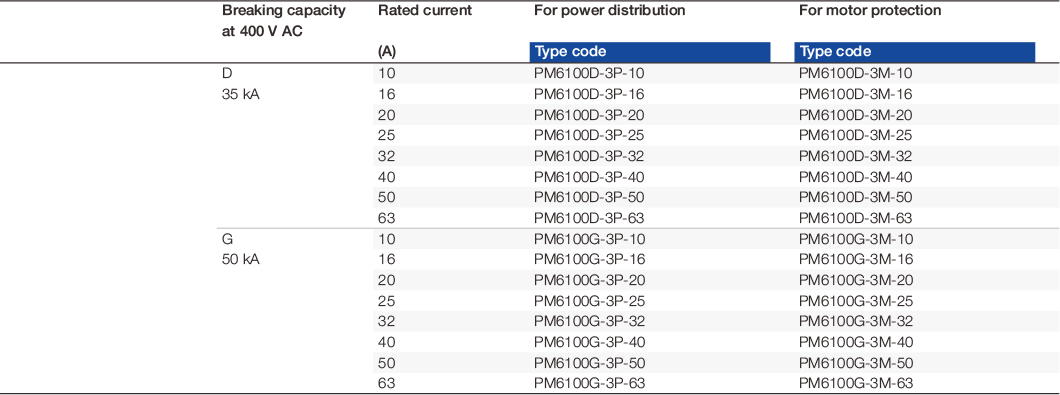

4 pole - 4 trips

PM61.8

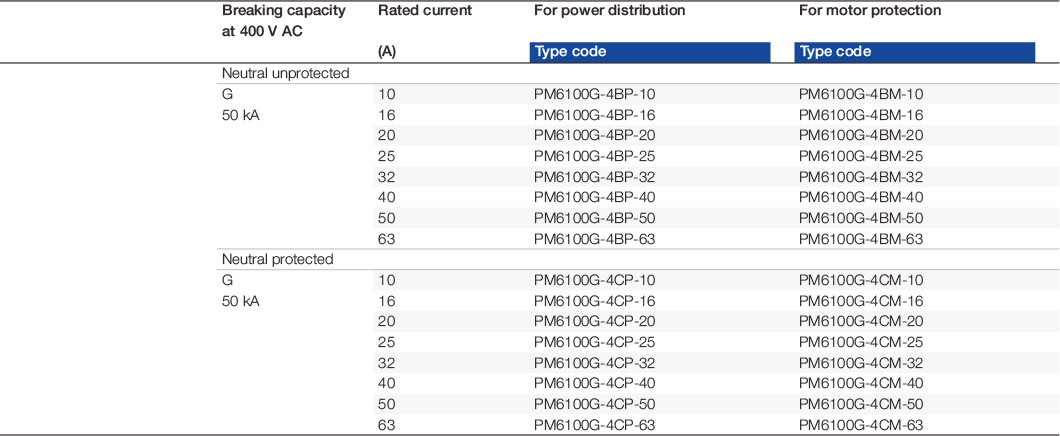

Selection and ordering data

3-pole

PM61.9

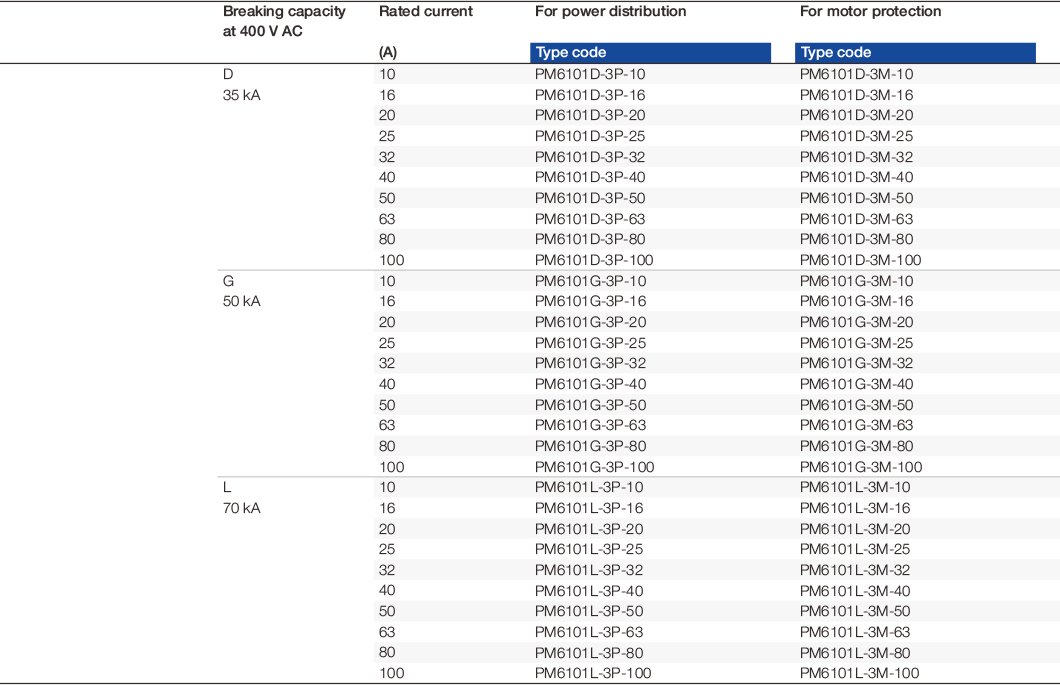

4 pole - 4 trips

PM61.10

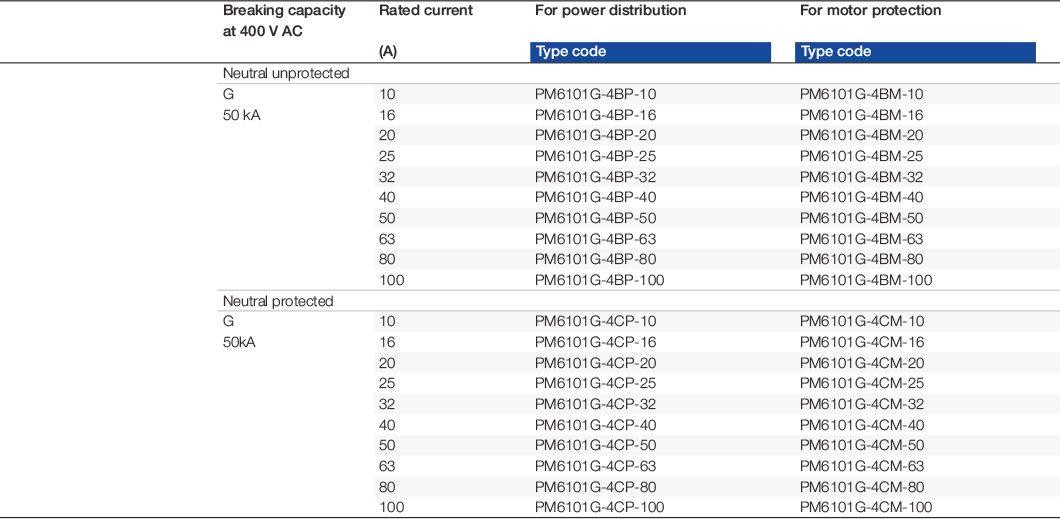

Selection and ordering data

3-pole

PM61.11

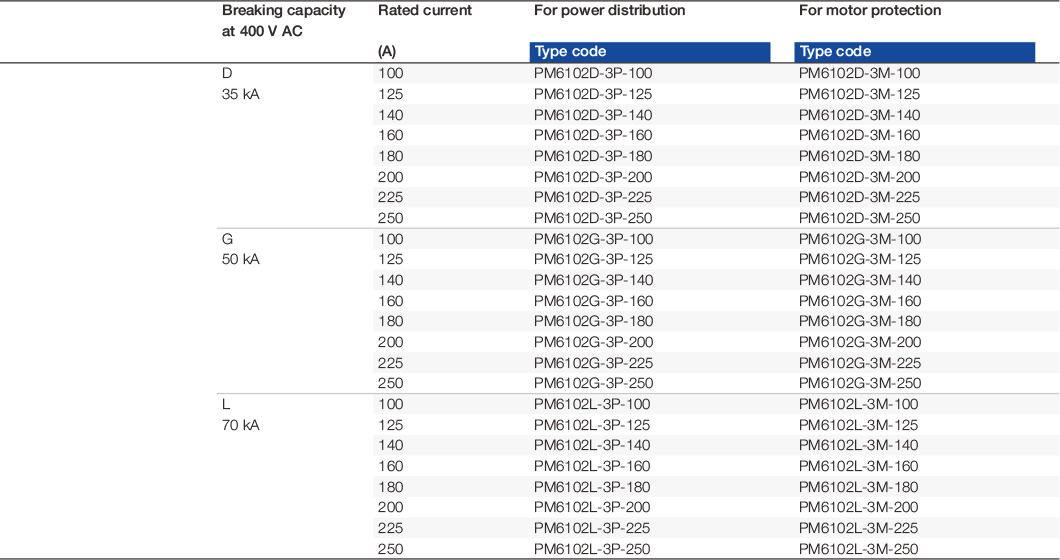

4 pole - 4 trips

PM61.12

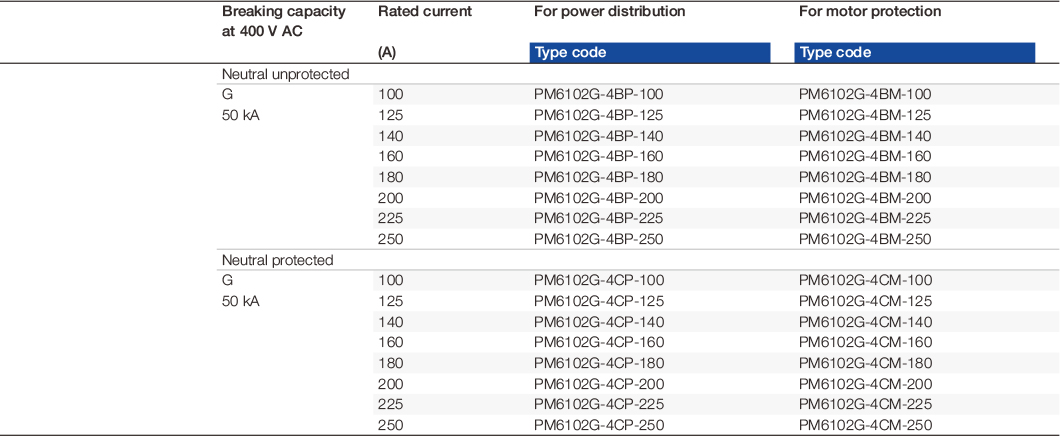

Selection and ordering data

3-pole

PM61.13

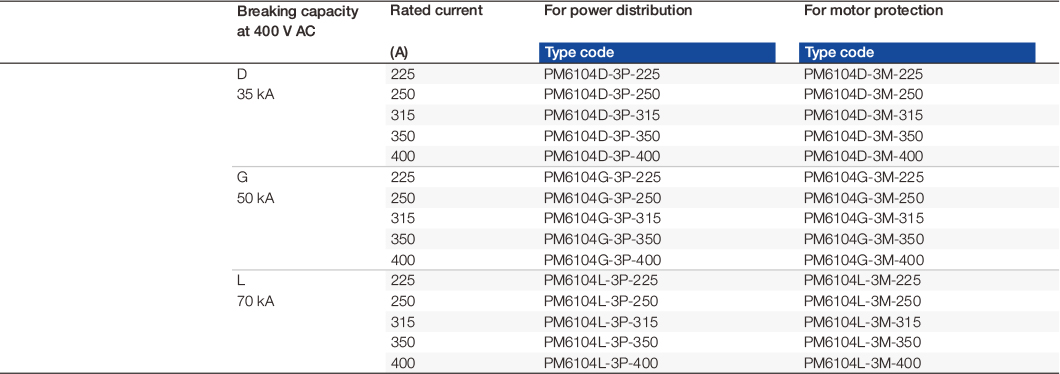

4 pole - 4 trips

PM61.14



Selection and ordering data

PM6106, 3-pole

PM61.15

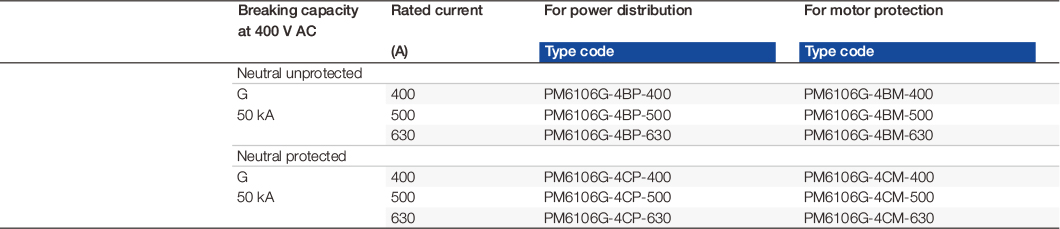

PM6106, 4 pole - 4 trips

PM61.16

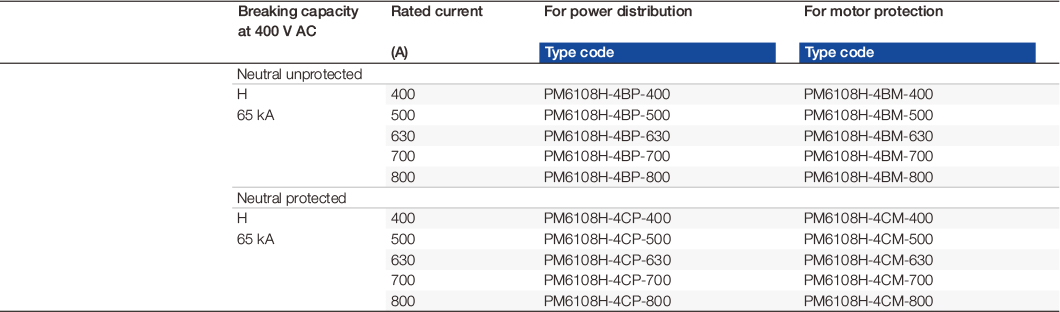

PM6108, 3-pole

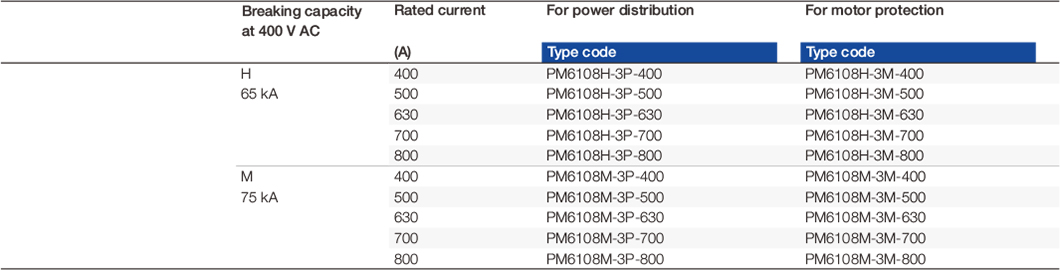

PM61.17


PM610 , 4 pole - 4 trips

PM61.18
