Functions
● Equipped with various modular electric for the function of terminal power distribution
● Suited for the installation of all Sassin individual modular devices.(RCDs, MCBs, RCBO’s, switch disconnectors etc)
● Used in residential building, non-residential building, industry
Technical specifications
● Standard: IEC 61439-3
● Modules (No.): 4, 6, 8, 12, 18, 24, 36
● Row :
● Single row for 4, 6, 8, 12, 18 modules
● 2 rows for 24 modules
● 3 rows for 36 modules
● Rated frame current In (A): 63, 100
● Color: White RAL 9003 and grey RAL 7035
● The color of door: Transparent, non transparent
● Mounting type: Surface, Flush.
● Degree of protection: IP30
● Material:
● HIPS for body
● SAN for door (4-18 modules)
● PC for door (24 & 36 modules)
● Fire resistence: 650 °C / 30 s
● Ambient temperature (°C): -5 ~ +40, max. 95 % humidity
● Storage temperature (°C): -40 ~ +75

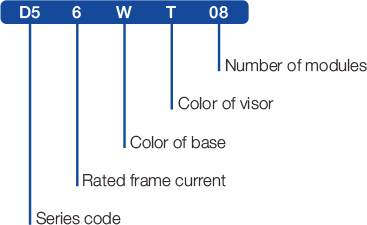

Instruction of type code

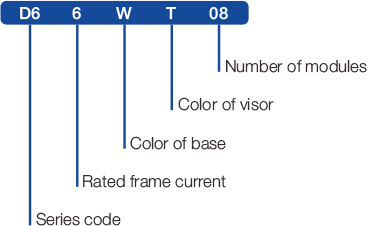

Instruction of type code

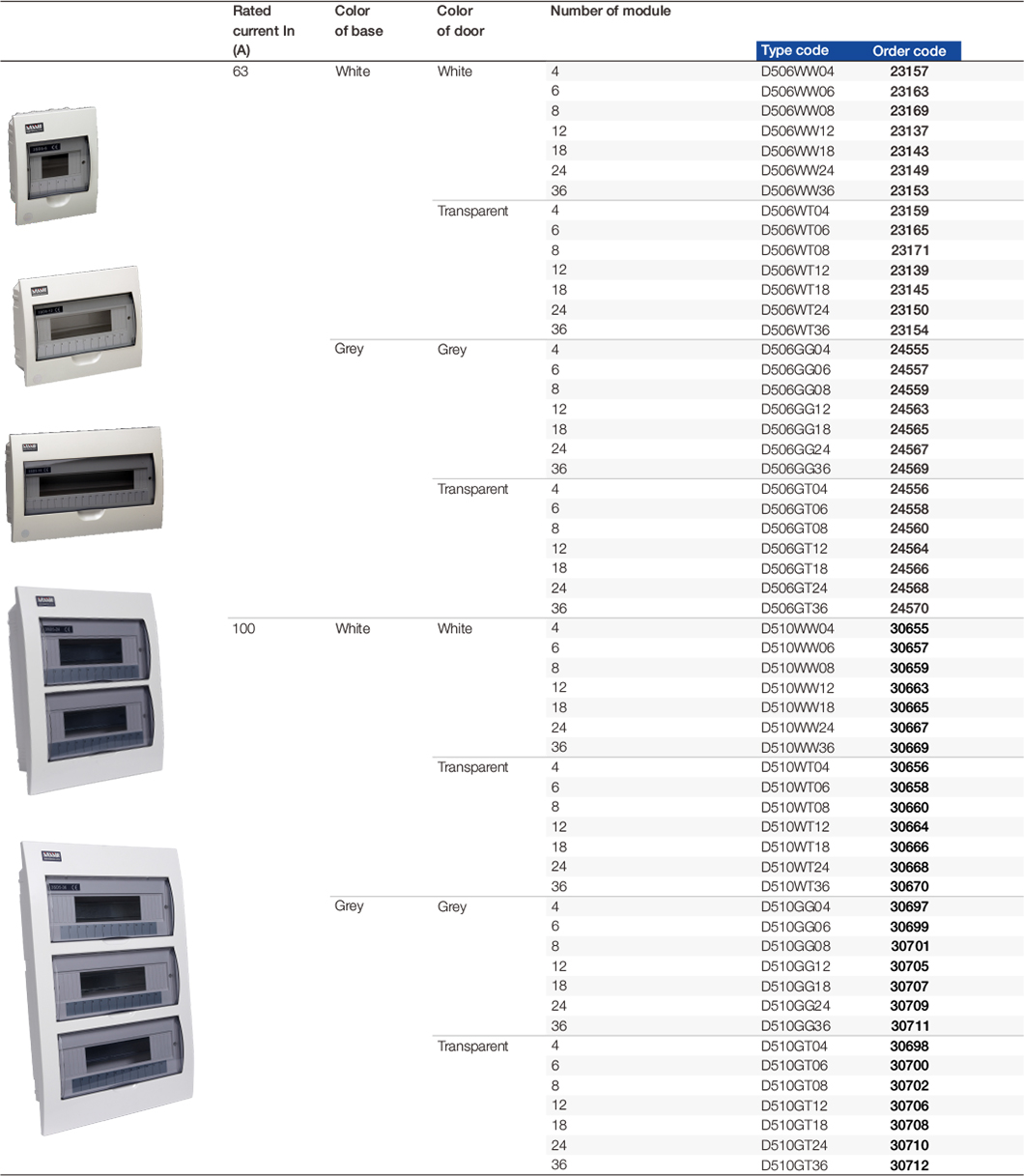

Selection and ordering data
Flush mounting 3SD5
Selection and ordering data
Surface mounting 3SD6
Fitting inside of the enclose

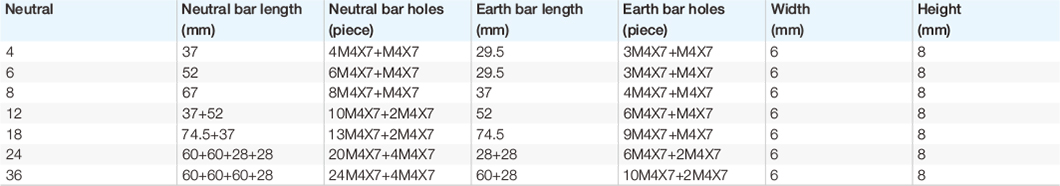

Attached with sticky label for marking on wire front panel; ready equipped with zero line and earth terminal bar and attached with zero bar, earth bar marks and alarm mark; users can select to connect with wire or insulating busbar method.

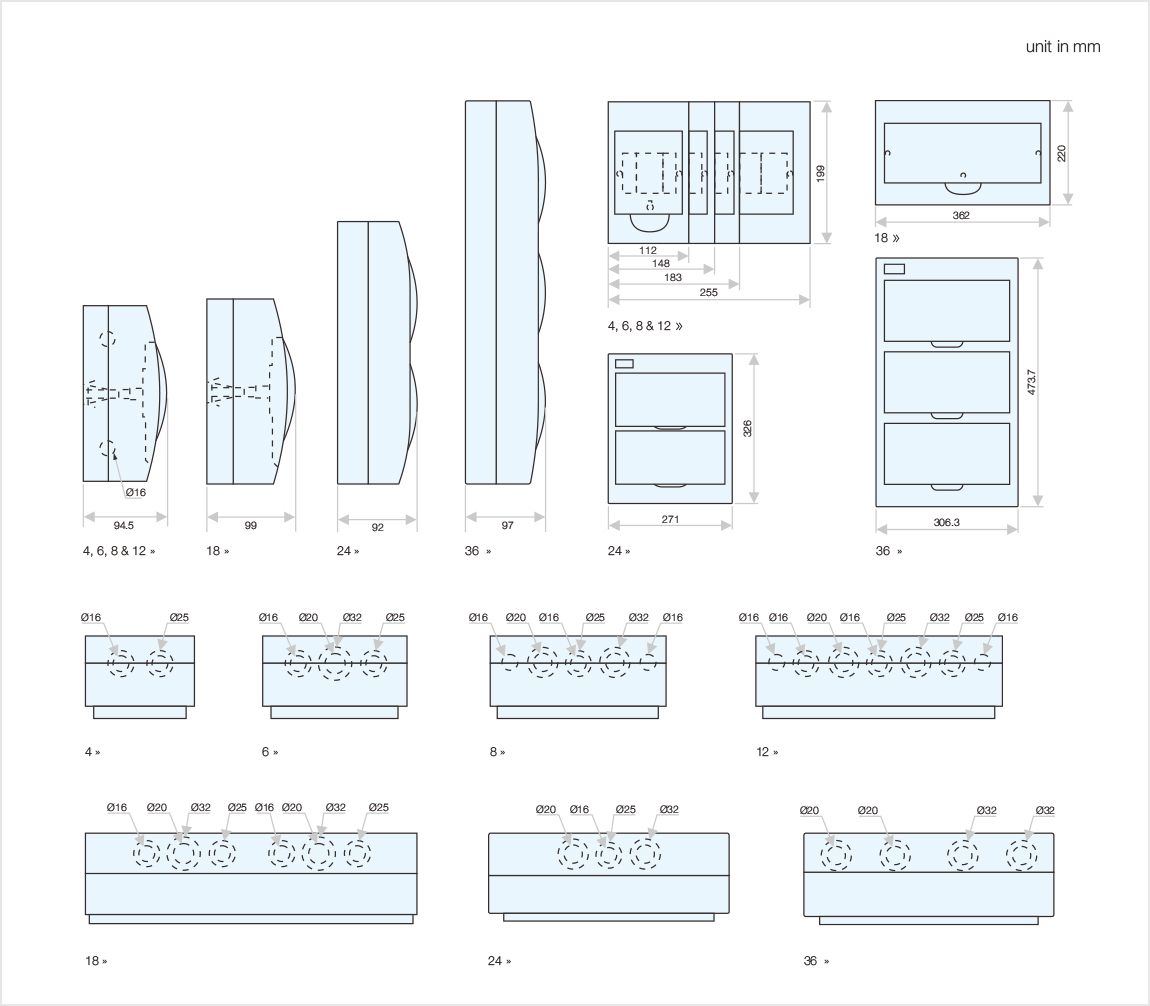

Outline and installation dimensions (3SD5)
Outline and installation dimensions (3SD6)
