3SD5T, metal base

Independent power supply with build-in power source,directly draws power from the incoming end to avoid the risk of protection function failure caused by external power supply failure.

● Overload protection
● Short circuit protection
● Isolation
● Controlling
● Used in residential building, non-residential building, industry, energy and infrastructure
Availability:

Functions

●   Equipped with various modular electric for the function of the terminal power distribution

●   Suited for the installation of all the Sassin individual modular device. (RCDs, MCBs, RCBOs, switch disconnectors etc.)

●   Used in the residential buildings, non-residential buildings and industry

●   Lifting installation rail, easy for installation


Technical specifications

●   Standard: IEC 61439-3

●   Modules: 4, 6, 8, 12, 18

●   Row: Single

●   Rated frame current In (A): 63

●   Color: White RAL 9003, Grey RAL7035

●   The color of the door: Transparent, non transparent

●   Mounting type: Flush

●   Degree of the protection: IP40

●   Material:

●   HIPS for the body

●   SAN for the door

●   Metal for the base

●   Fire resistence: 650 ºC / 30 s

●   Ambient temperature (ºC): -5 ~ +40, 50% humidity permitted under max +40 ºC

●   Storage temperature (ºC): -40 ~ +75

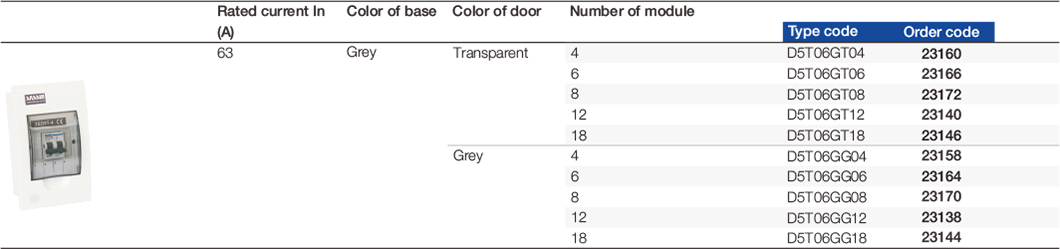

Selection and ordering data

Flush mounting 3SD5T

3SD5T.1


Outline and installation dimensions

3SD5T.2


Type A(mm) B(mm) C(mm) D(mm)

H max

(mm)

3SD5T-04 221 190.5 136 108.5 102
3SD5T-06 221 190.5 172 142.5 102
3SD5T-08 221 190.5 207 180.5 102
3SD5T-12 221 190.5 279 252.5 102
3SD5T-18 251 223.5 397 360.5 103
