3SD8, plastic

Independent power supply with build-in power source,directly draws power from the incoming end to avoid the risk of protection function failure caused by external power supply failure.

● Overload protection
● Short circuit protection
● Isolation
● Controlling
● Used in residential building, non-residential building, industry, energy and infrastructure
Availability:

Functions

●   Equipped with various modular electric for the function of terminal power distribution

●   Suited for the installation of all Sassin individual modular devices. (RCDs, MCBs, RCBO’s, switch disconnectors etc)

●   Used in residential building, non-residential building, industry


Technical specifications

●   Standard: IEC 61439-3

●   Modules: 4, 7, 10, 13, 16, 21

●   Row: Single

●   Rated voltage In (A): 100

●   Color: White RAL 9003

●   Color of door: Transparent, non transparent

●   Mounting type: Surface

●   Degree of protection: IP30

●   Material:

●   HIPS for body

●   AS for door

●   Fire resistence: 650 °C / 30 s

●   Ambient temperature (°C): -5 ~ +40, max. 95 % humidity

●   Storage temperature (°C): -40 ~ +75

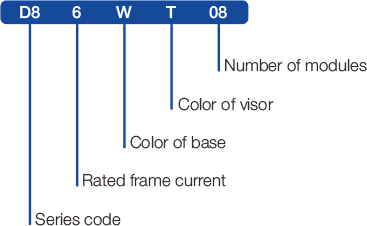

Instruction of type code

3SD8.1

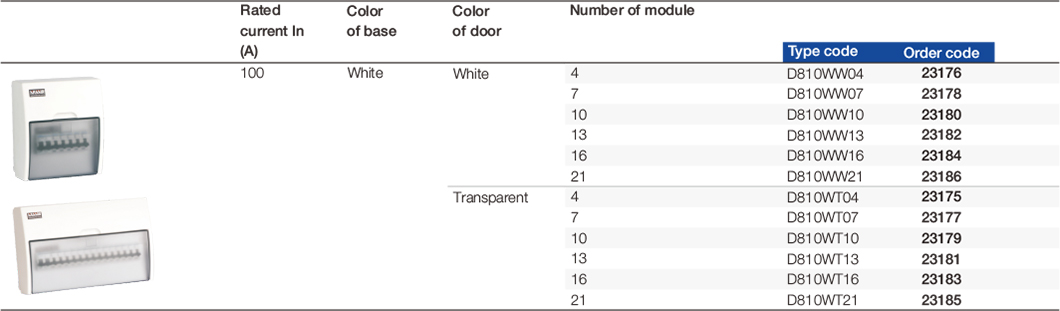

Selection and ordering data

3SD8 Surface Mounting

3SD8.2


Fitting inside of the enclose

Attached with sticky label for marking on wire front panel; ready equipped with zero line and earth terminal bar and attached with zero bar, earth bar marks and alarm mark; users can select to connect with wire or insulating busbar method.

The Number of Module

Neutral bar holes 1

Neutral bar holes 2

Earth bar holes

4 module

1xØ6 + 1xØ5.8 + 3xØ5.4 - 1xØ6 + 1xØ5.8 + 3xØ5.4
7 module 1xØ6 + 1xØ5.8 + 6xØ5.4 - 1xØ6 + 1xØ5.8 + 4xØ5.4
10 module 1xØ6 + 1xØ5.8 + 10xØ5.4 - 1xØ6 + 1xØ5.8 + 8xØ5.4
13 module 1xØ6 + 1xØ5.8 + 8xØ5.4 1xØ6 + 1xØ5.8 + 6xØ5.4 1xØ6 + 1xØ5.8 + 11xØ5.4
16 module 1xØ6 + 1xØ5.8 + 8xØ5.4 1xØ6 + 1xØ5.8 + 8xØ5.4 1xØ6 + 1xØ5.8 + 14xØ5.4
21 module 1xØ6 + 1xØ5.8 + 8xØ5.4 1xØ6 + 1xØ5.8 + 11xØ5.4 1xØ6 + 1xØ5.8 + 18xØ5.4

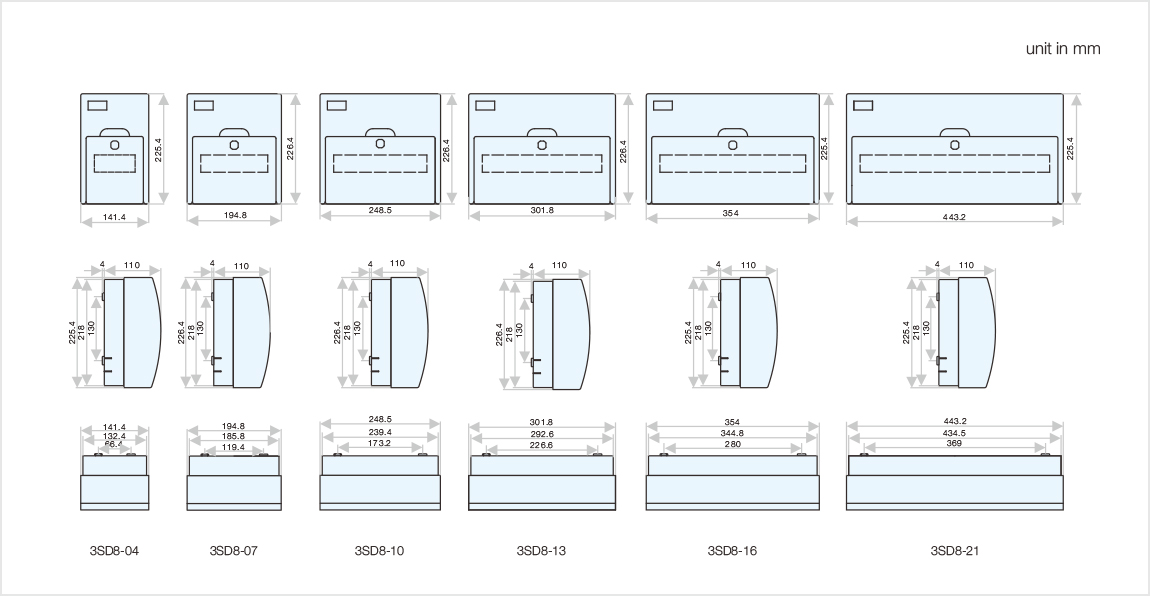

Outline and installation dimensions (3SD8)

3SD8.3
