3SC8, contactors, up to 45 kW

Independent power supply with build-in power source,directly draws power from the incoming end to avoid the risk of protection function failure caused by external power supply failure.

● Overload protection
● Short circuit protection
● Isolation
● Controlling
● Used in residential building, non-residential building, industry, energy and infrastructure
Availability:
Inquire Add to Basket

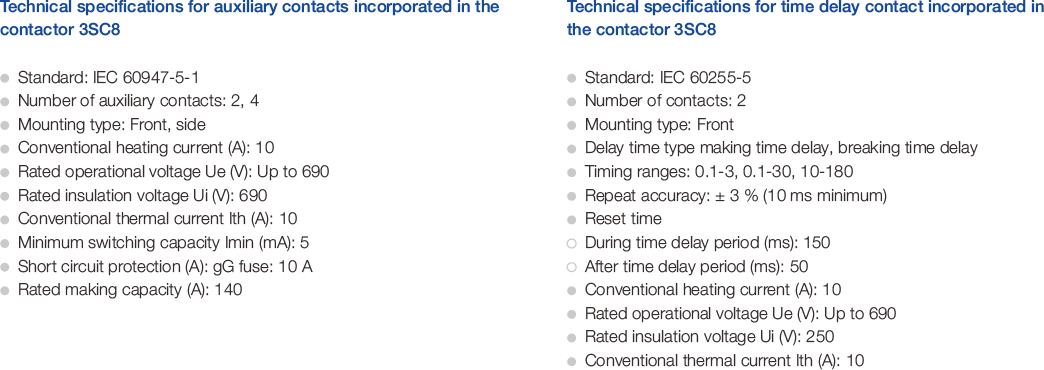

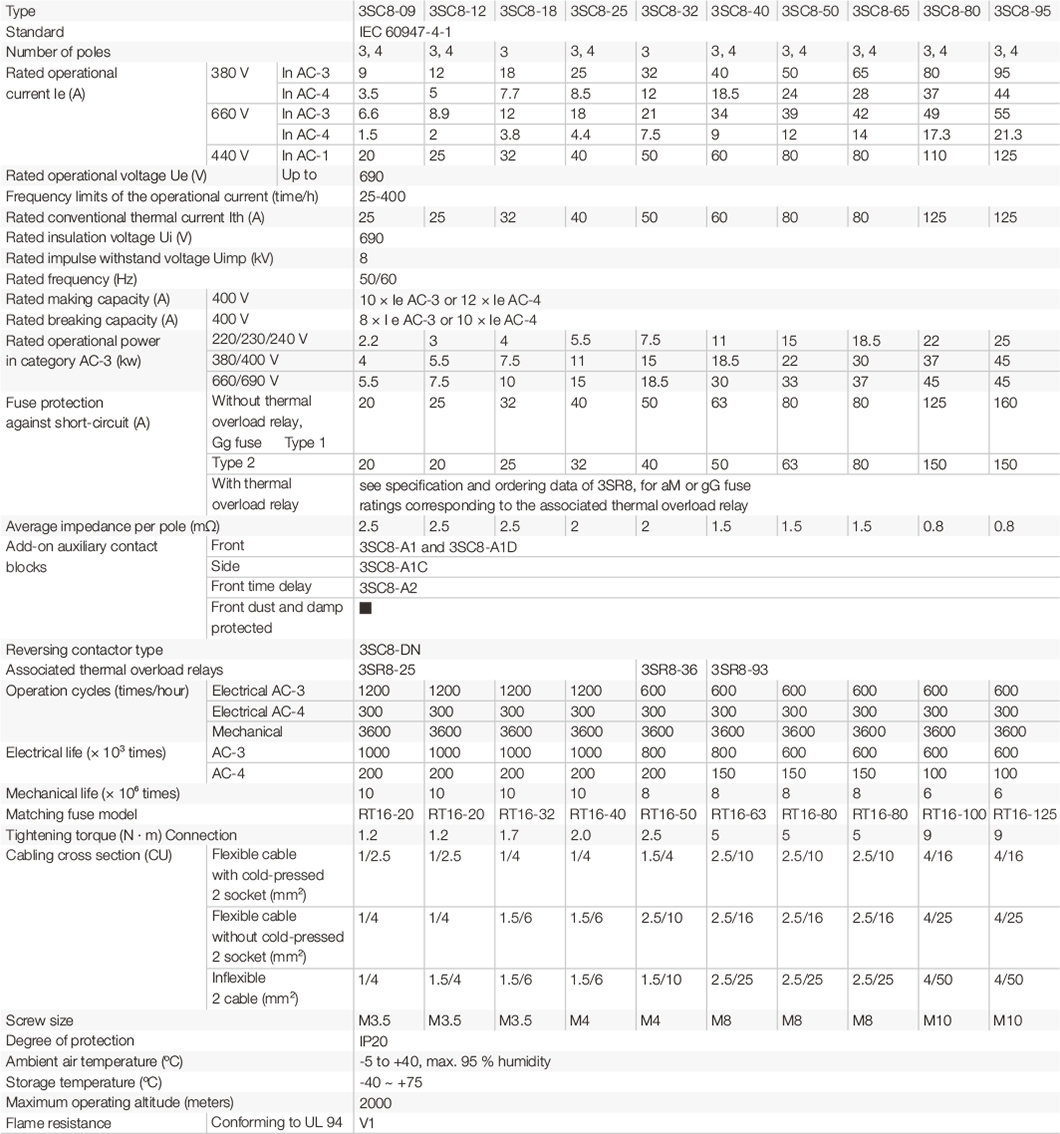

Technical specifications for type 3SC8

3SC8.1


3SC8.2

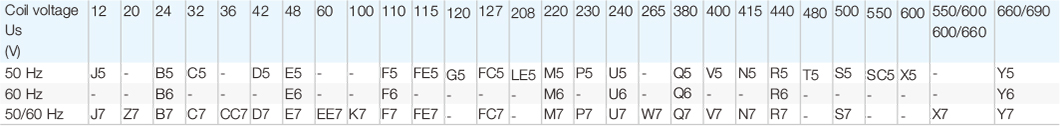

Coil voltage of contactor 3SC8

3SC8.3

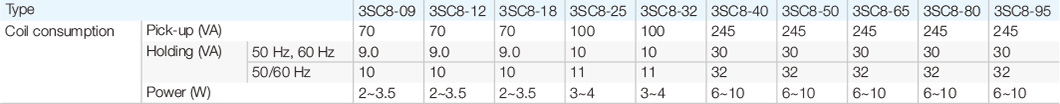

Technical specifications for coil incorporated in contactor 3SC8

3SC8.4

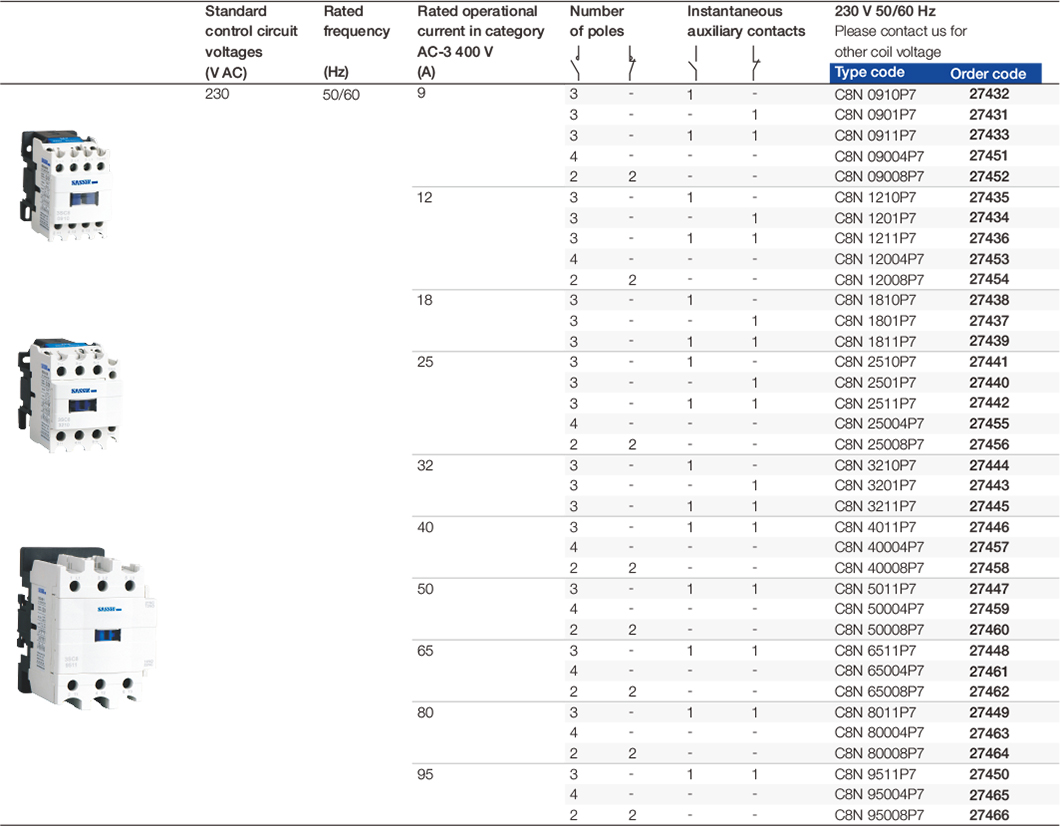

Selection and ordering data

3SC8.5

Please contact us for other coil voltage and frequency listed in "coil voltage of contactor" on page 1-222



3SC8-DN reversing contactors

3SC8.6

Please contact us for other coil voltage and frequency listed in "coil voltage of contactor" on page 1-222


Selection and ordering data

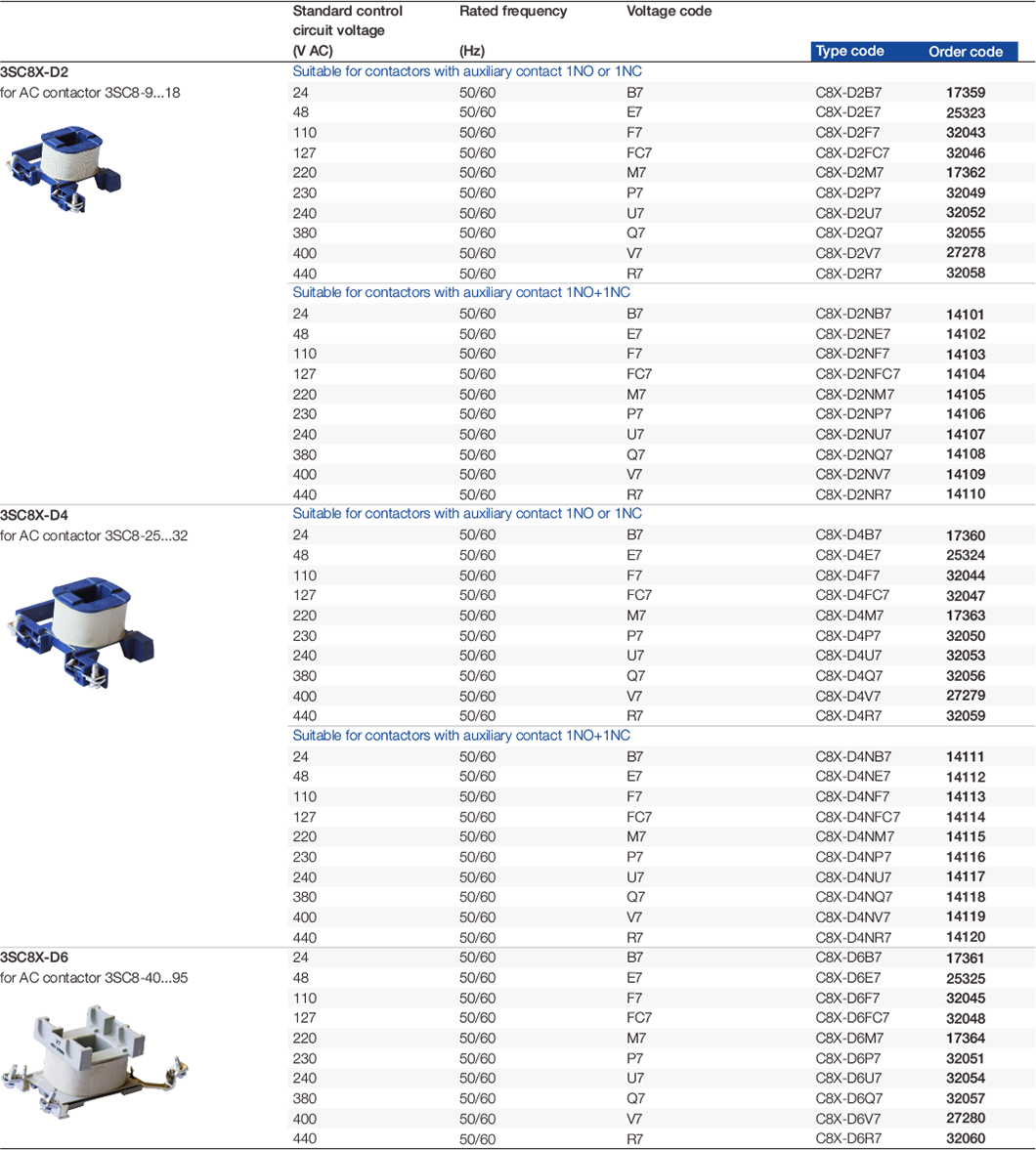

Coil for contactor 3SC8

3SC8.7

Please contact us for other coil voltages


3SC8.8

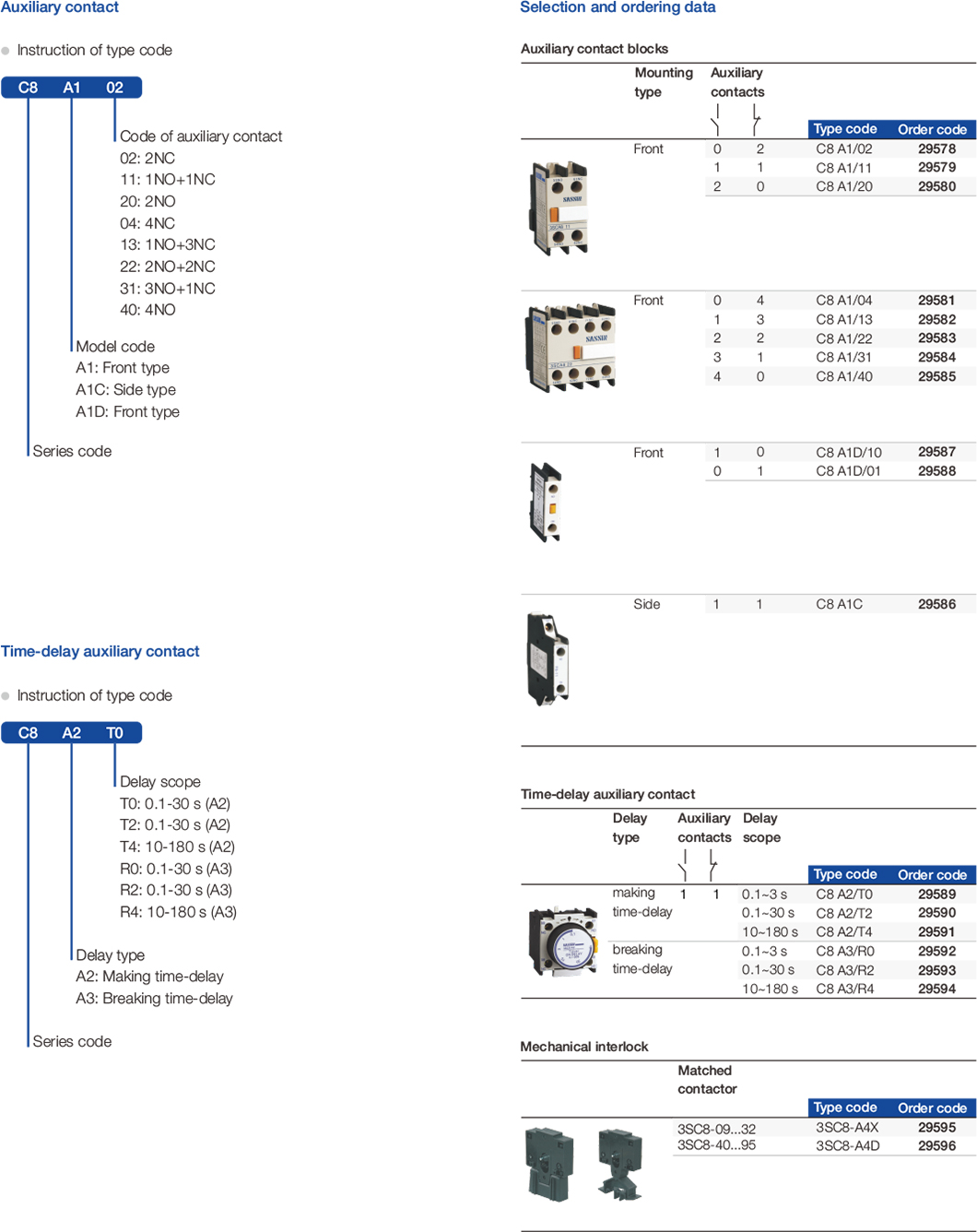

Derivative products of AC contactor

3SC8.9

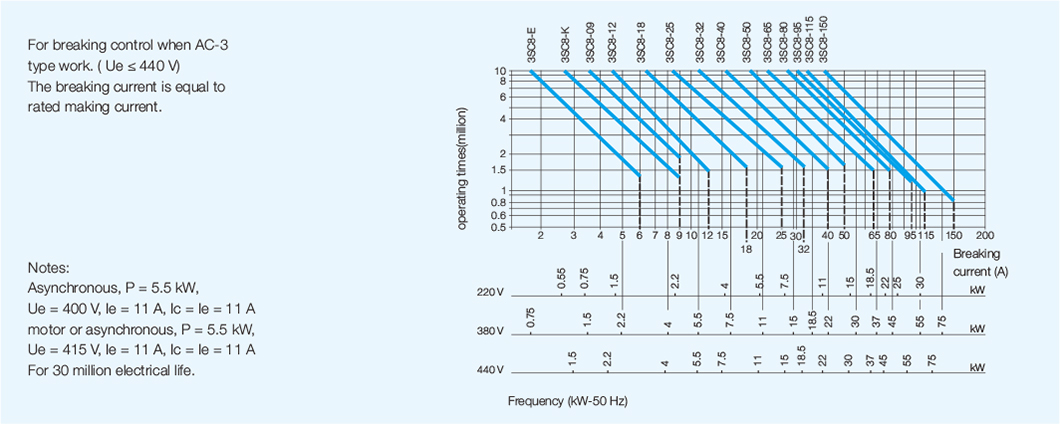

Electrical life curve for AC contactor 3SC8

3SC8.10

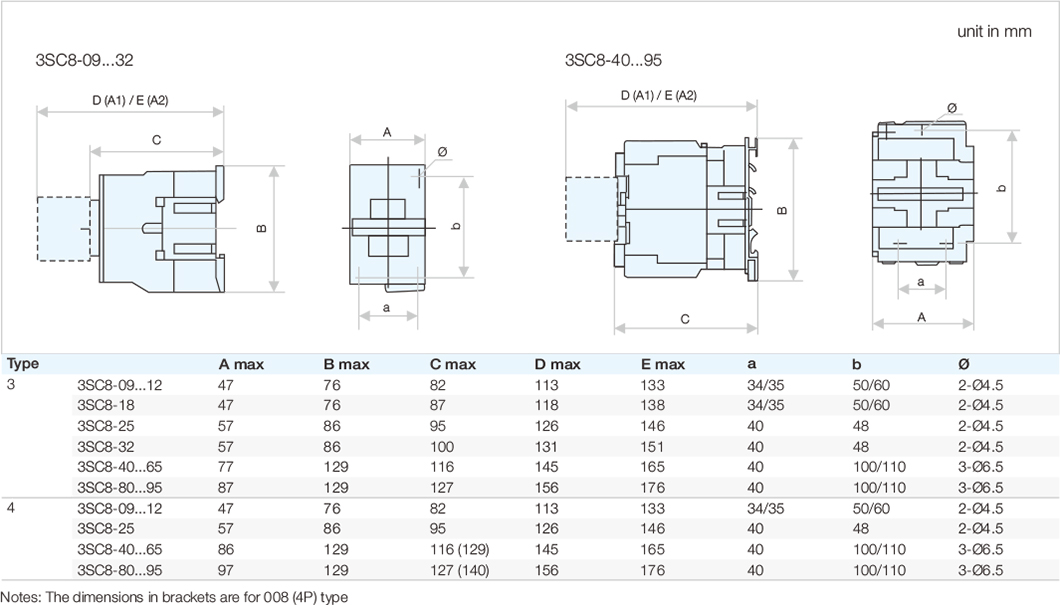

Outline and installation dimensions

3SC8.11


Previous:
Next:
3SC8
