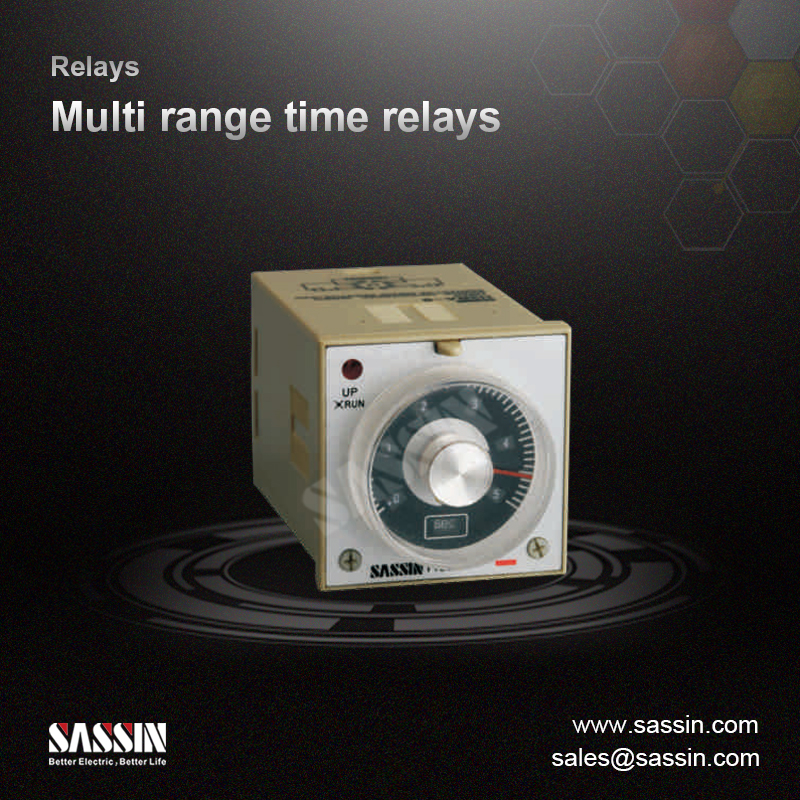

Multi range time relays

Standard: IEC 60050-445

Accuracy (class):

Repeat error: 1% ~ 2% max

Setting error: 5% ~ 10% max

voltage error: 1% ~ 5% max

Temp. error: 2% max

Rated voltage (V DC/AC ): 12 ~ 240

Indicator operation:

ON-UP operation; time operation flicker

O/P contact capacity (A): 5

6 Mechanical life (times): 10

5 Electrical life (times): 10

Reset time: 0.1-0.5 second max

Self-consumed power (VA): 2

Ambient temperature (°C): -10 ~ +55

Ambient humidity: 35 ~ 85% RH
