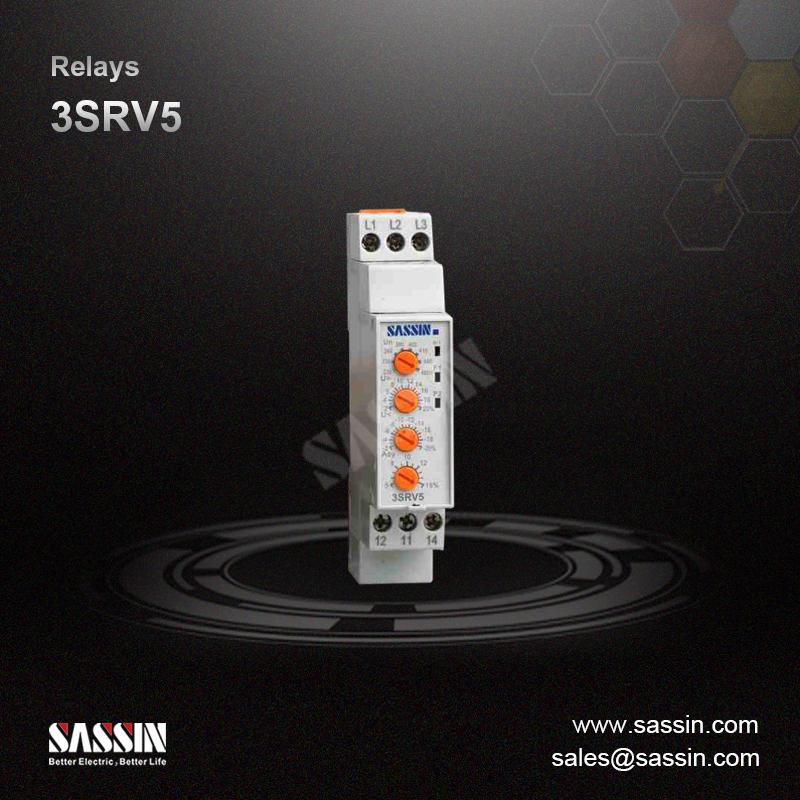

3SRV5 series

● Phase failure protection and phase sequence protection
● Over-voltage and under-voltage protection
● Three phase unbalance protection
● Widely used in industry control system, power compensation system, air conditioning system, motor control system.
Availability:

Functions and Applications

  • Phase failure protection and phase sequence protection

  • Over-voltage and under-voltage protection

  • Three phase unbalance protection

  • Widely used in industry control system, power compensation system, air conditioning system, Motor control system.


Features


  • Micro processor base

  • With high reliability and high anti- interference ability.

  • Modular design,18 mm in width.

  • TRMS measurement, with accuracy ≤ 1%. AC/DC purpose;

  • Wide range of frequency measuring of 45 Hz ~ 65 Hz in AC circuit LED indication.

  • Communicating function is available by using Modbus communicating module

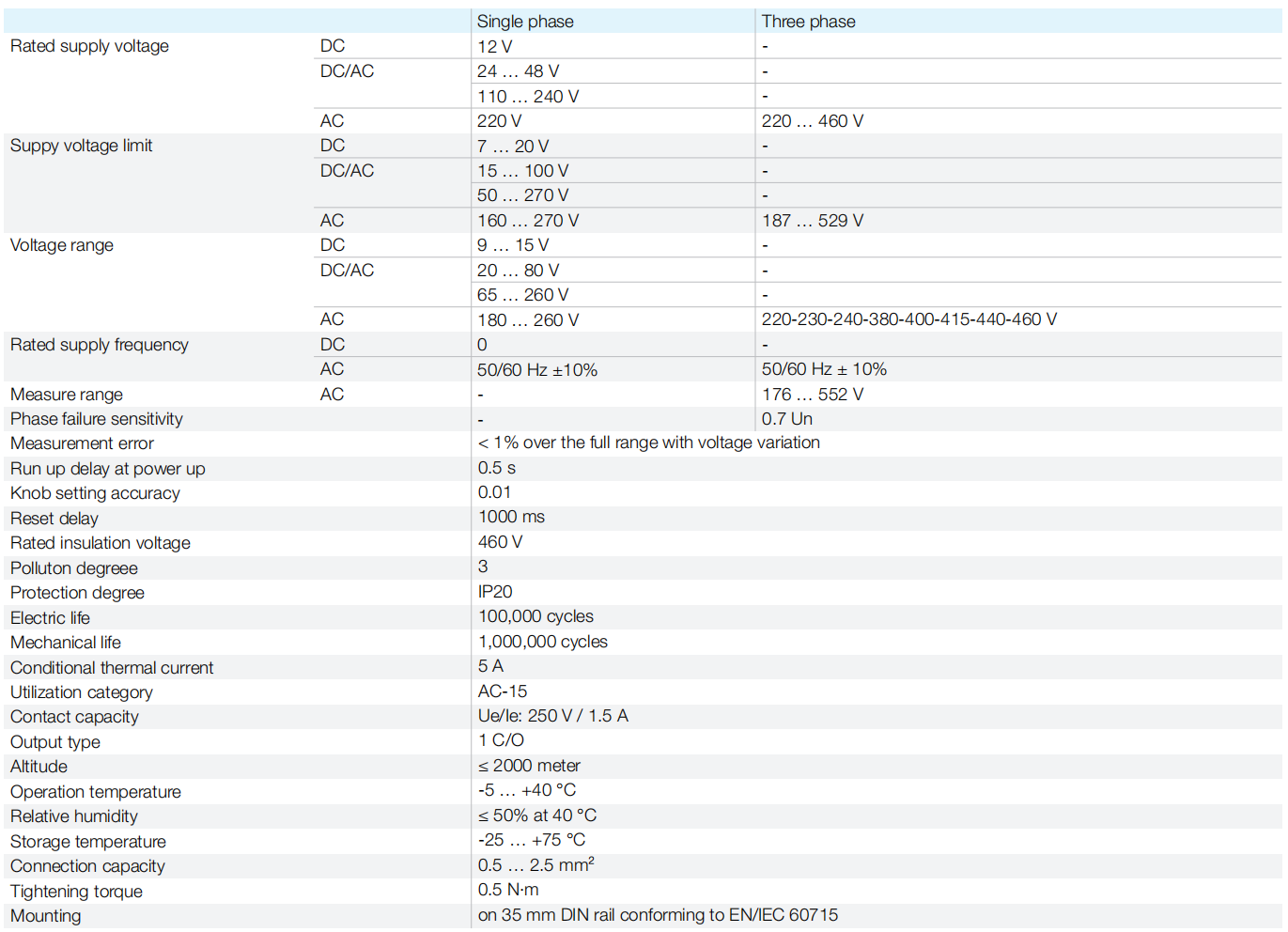

Technical specifications

V 27.4 4系列 20210128_78-2
