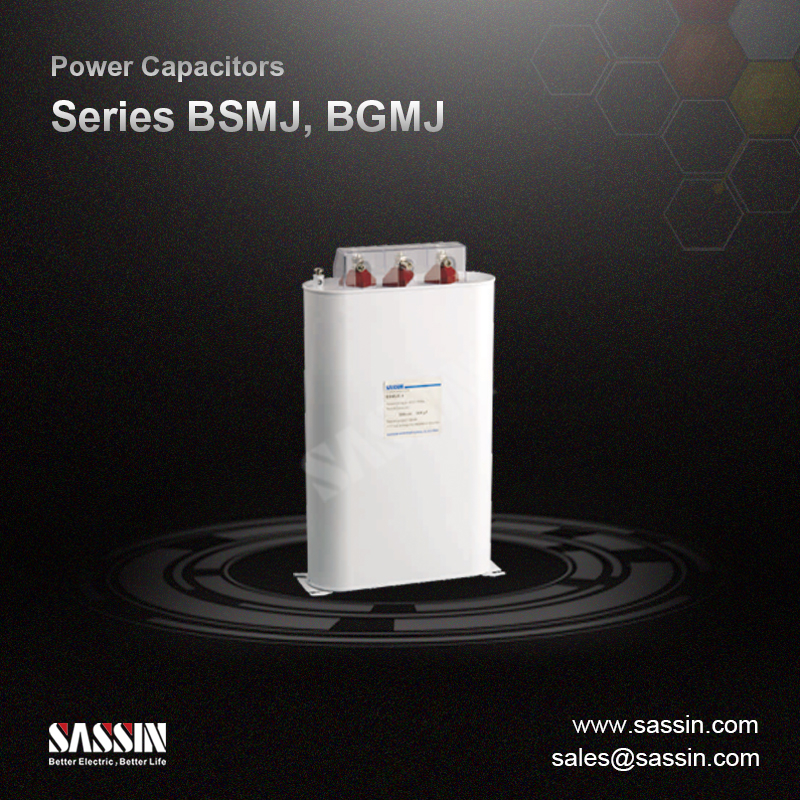

BSMJ/BGMJ series power capacitors

Availability:

Technical specifications

  • Standard: IEC 60831

  • Rated voltage (V AC): 230, 250, 280, 400, 415, 450, 525, 690

  • Frequency (Hz): 50/60

  • Rated output (Kvar): 1~80

  • Capacitance tolerance: -5 ~ +10 %

  • Material:

  • Body: dielectric-metallized poly prop ylene film;

  • Impregnant: semi-soild

  • Over-voltage permitted: 1.0 Un, 1.1 Un ≤ 8 h/day, 1.3 Un 1min

  • Over-current permitted (In): 1.3

  • Loss angle tangent: BSMJ: tg δ ≤ 0.1%; BGMJ: tg δ ≤ 0.0015

  • Impact current (ln): ≤ 300

  • Dielectric loss (W/kvar): ≤ 0.25

  • Ambient temperature (°C): -25 ~ +50 Humidity ≤ 90 %

  • Altitude (m): ≤ 2000
