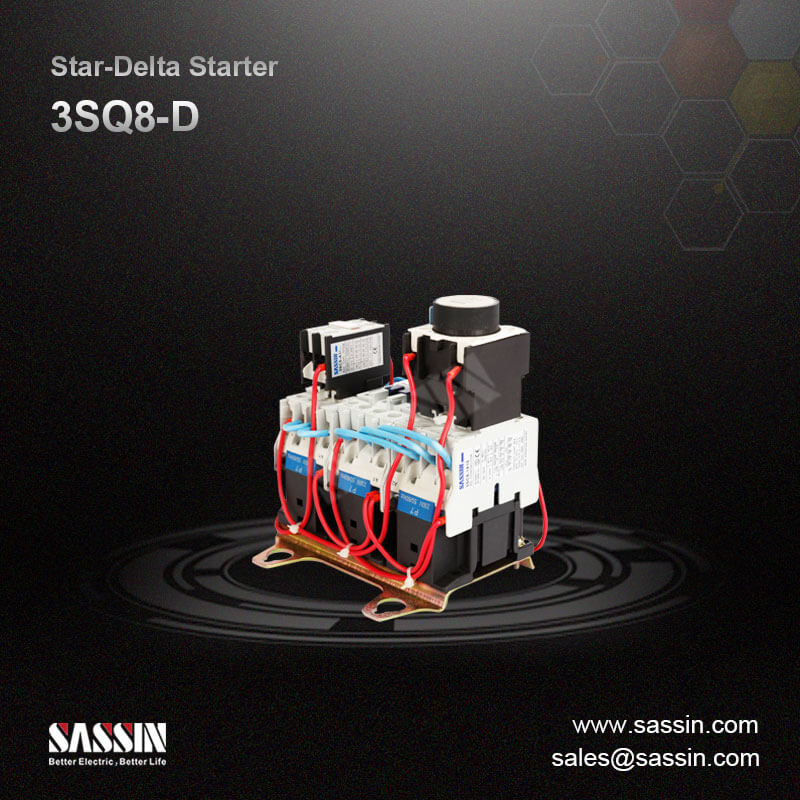

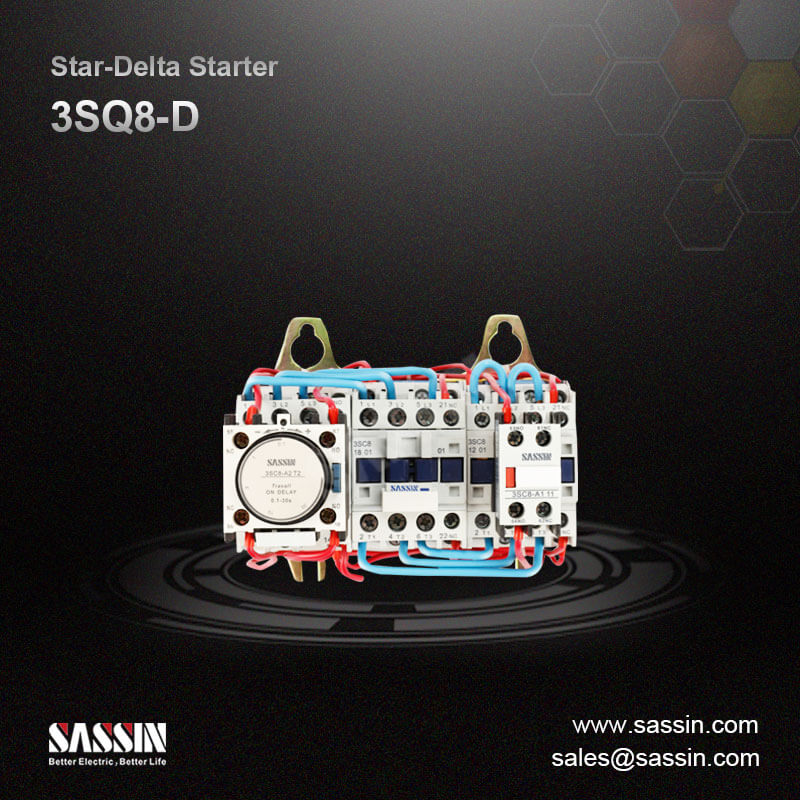

3SQ8-D

Independent power supply with build-in power source,directly draws power from the incoming end to avoid the risk of protection function failure caused by external power supply failure.

● Overload protection
● Short circuit protection
● Isolation
● Controlling
● Used in residential building, non-residential building, industry, energy and infrastructure
Availability:
Inquire Add to Basket

Applications and functions

●   For startup of motor that has heavy duty and current used is high

●   Reducing the starting current and starting torque when motor starts up

●   Smaller circuit breakers and thinner 3-phase line wires can be installed to supply power to the motor

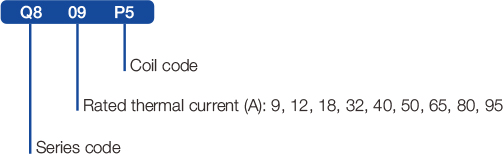

Instruction of type code

3SQ8-D.1

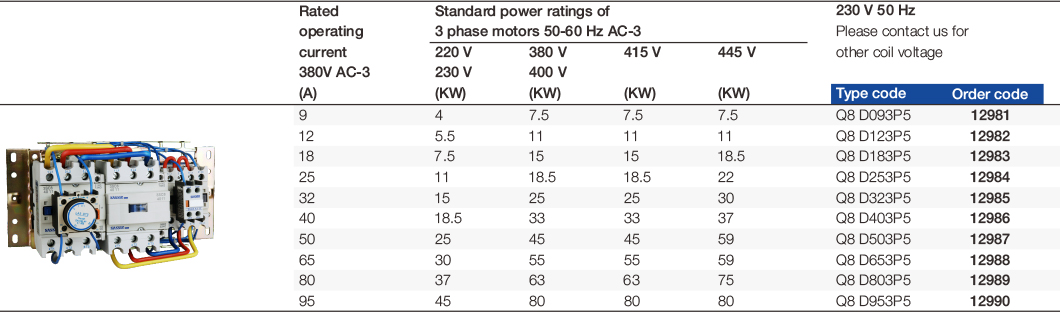

Selection and ordering data

3SQ8-D.2

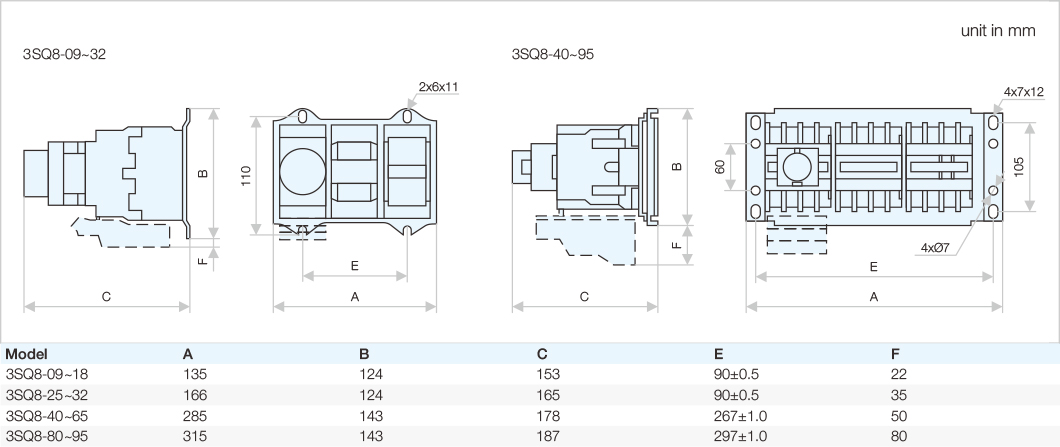

Outline and installation dimensions

3SQ8-D.3
