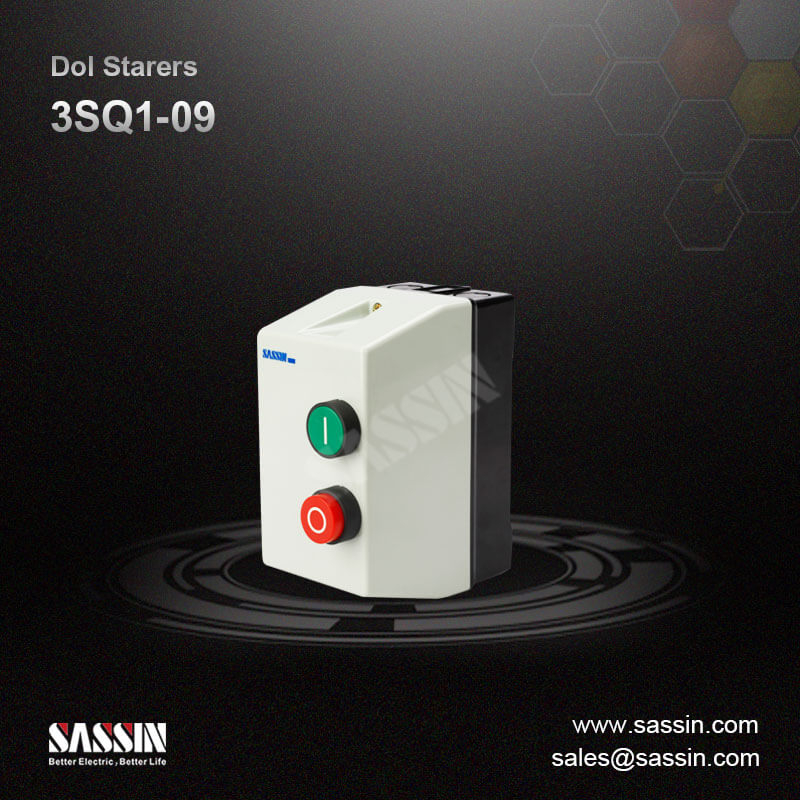

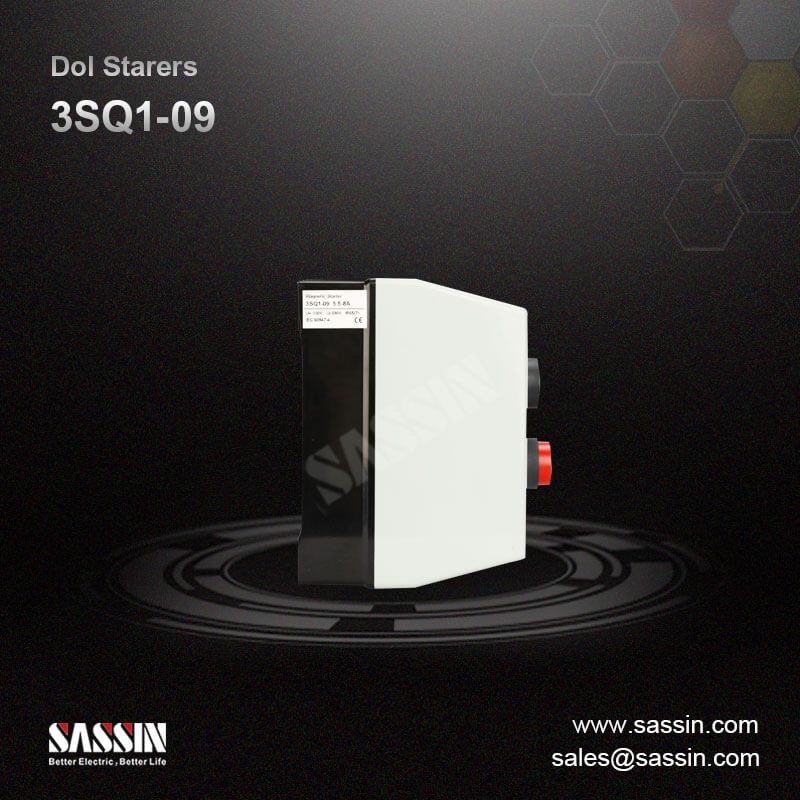

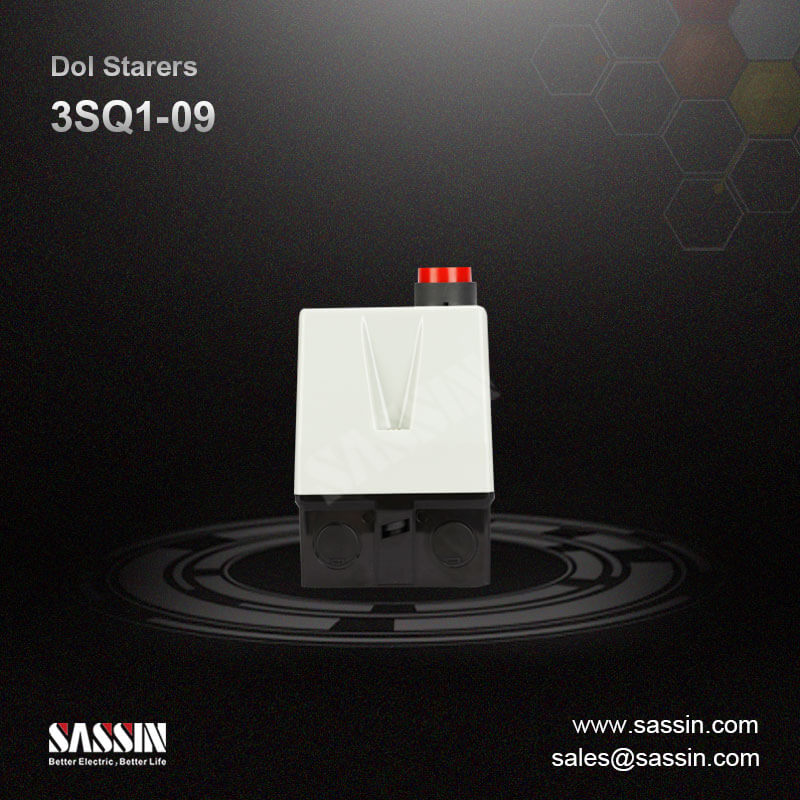

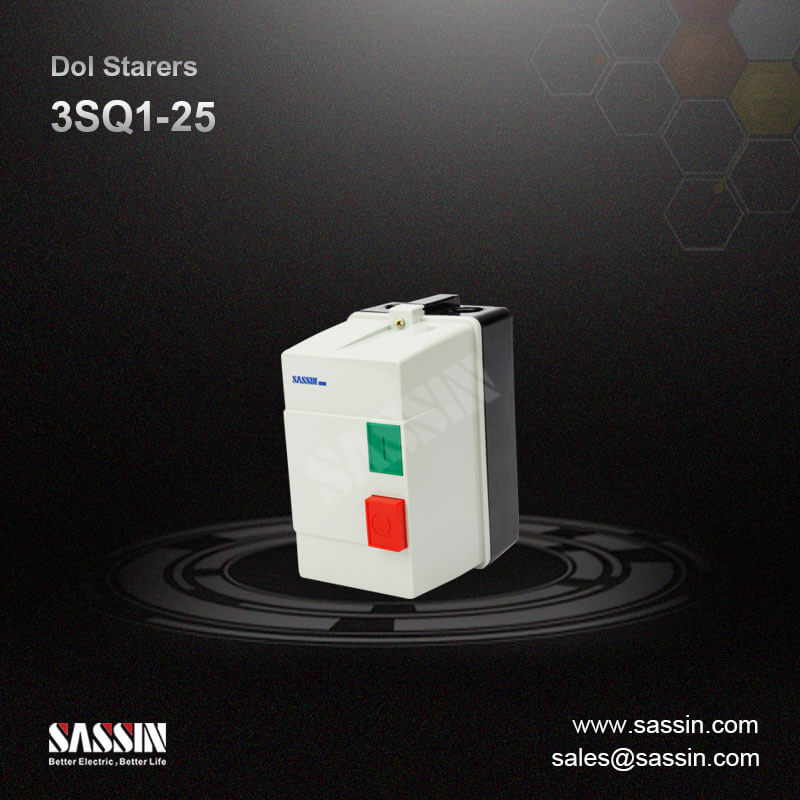

3SQ1, direct-on-line (DOL) starters

Independent power supply with build-in power source,directly draws power from the incoming end to avoid the risk of protection function failure caused by external power supply failure.

● Overload protection
● Short circuit protection
● Isolation
● Controlling
● Used in residential building, non-residential building, industry, energy and infrastructure
Availability:

Applications and functions

●   Controlling the direct start and halt of the electromotor

●   Protecting the motor from overload and phase failure

●   Used in remote making and breaking circuit and frequently starting and controlling motor

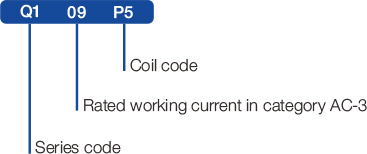

Instruction of type code

3SQ1.1


Technical specifications

●   Type: 3SQ1

●   Standards: IEC 60947-4-1, IEC 60439-1

●   Rated working current (A): 09, 12, 18, 25, 32, 40, 50, 65, 80, 95

●   Rated operational voltage Ue (V): 690

●   Rated insulation voltage Ui (V): 690

●   Rated impulse withstand voltage Uimp (kV): 8

●   Rated frequency (Hz): 50/60

●   Control (2 pushbuttons mounted on enclosure cover): 1 green Start button “I”; 1 red Stop/Reset button “O”

●   Enclosure:

    3SQ1-09/12/18 Double insulated, degree of protection IP65;

    3SQ1-25/32 Double insulated, degree of protection IP55;

    3SQ1-40/50/65/80/95 Metal, degree of protection IP65

●   Electrical life (× 10 times): 5

●   Mechanical life (× 10 times): 50

●   The model of matched AC contactor: 3SC8

●   The model of matched thermal relay: 3SR8

●   Ambient air temperature (ºC): -5 to +40, max. 95 % humidity

●   Storage temperature (ºC): -40 ~ +75

●   Maximum operating altitude (meters): 2000

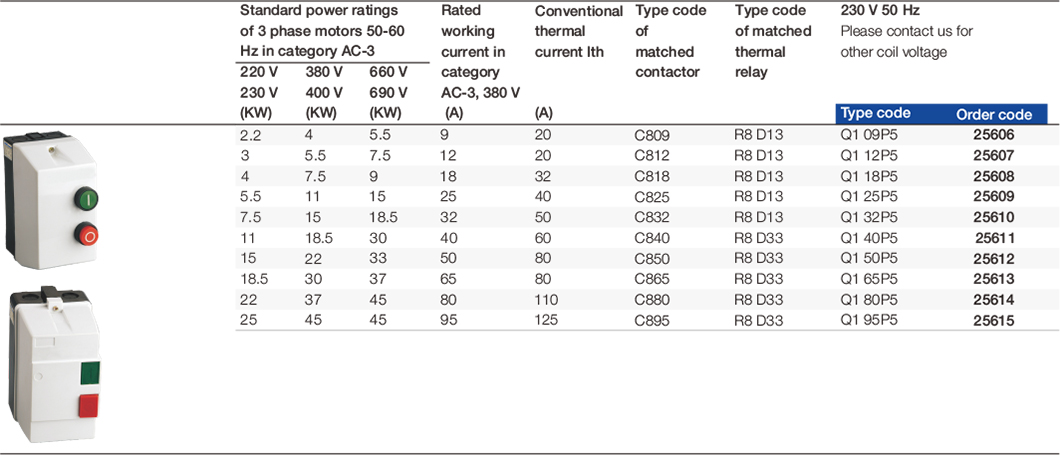

Selection and ordering data

3SQ1.2

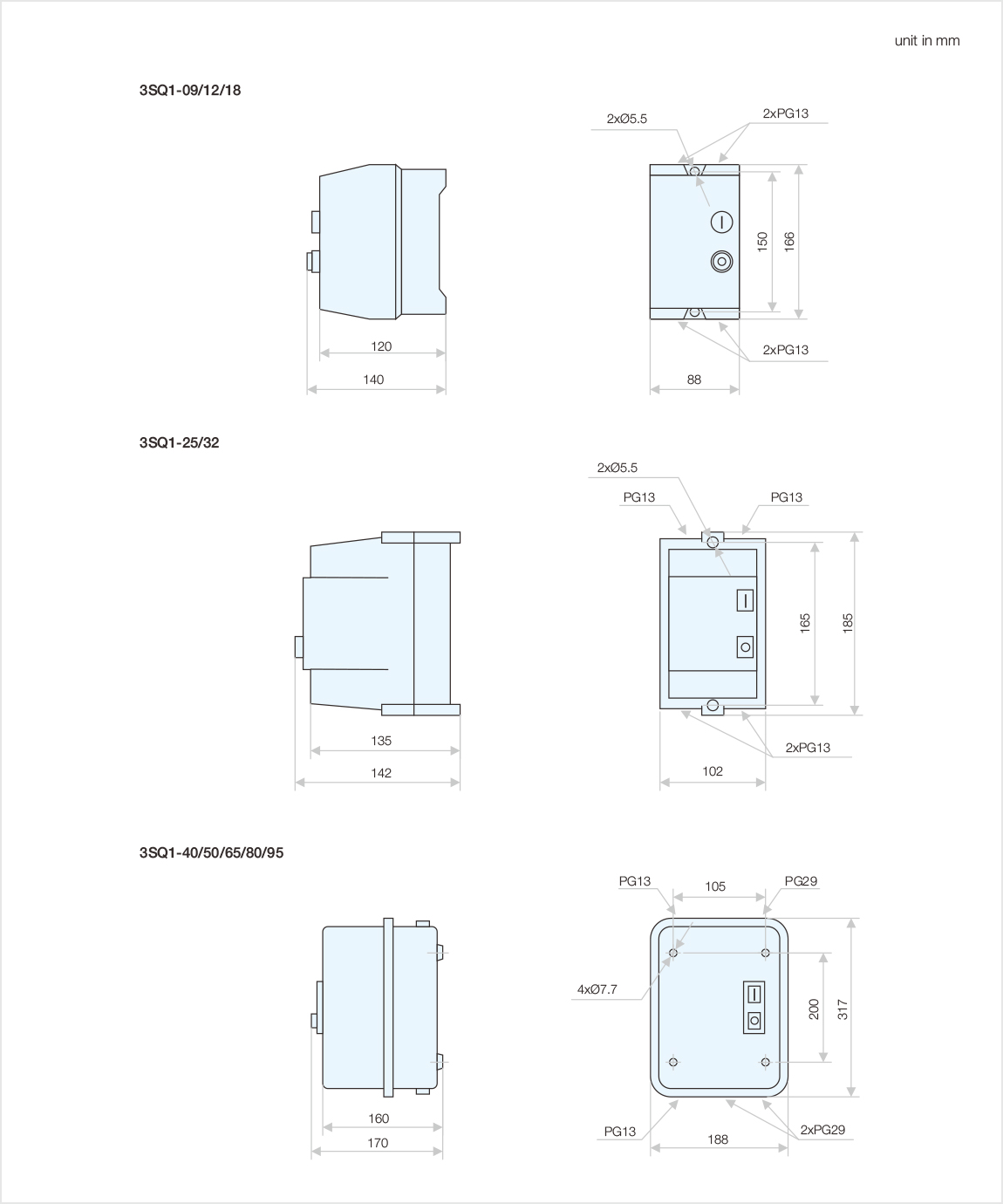

Outline and installation dimensions

3SQ1.3
