3SE8 & 3SUL181H & 3SRC18 & 3SHC18A

Independent power supply with build-in power source,directly draws power from the incoming end to avoid the risk of protection function failure caused by external power supply failure.

● Overload protection
● Short circuit protection
● Isolation
● Controlling
● Used in residential building, non-residential building, industry, energy and infrastructure
Availability:
Inquire Add to Basket

Functions

●   Controlling circuit opening and closing according to the scheduled program

●   Can be set on the scheduled program

●   Available on hourly, daily and weekly version and equipped with a 16 A contact

●   Fitting applications such as shop lighting systems, public buildings, schools, heating and irrigation systems and so forth

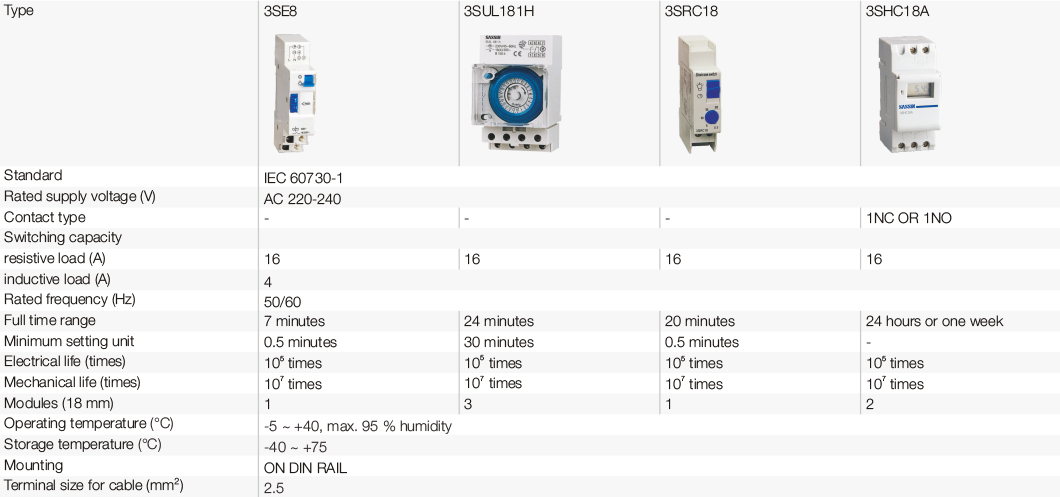

Technical specifications

3SE8&3SUL181H&-3SRC18&3SHC18A.1

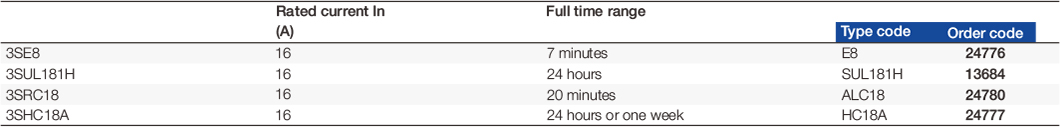

Selection and ordering data

3SE8&3SUL181H&-3SRC18&3SHC18A.2

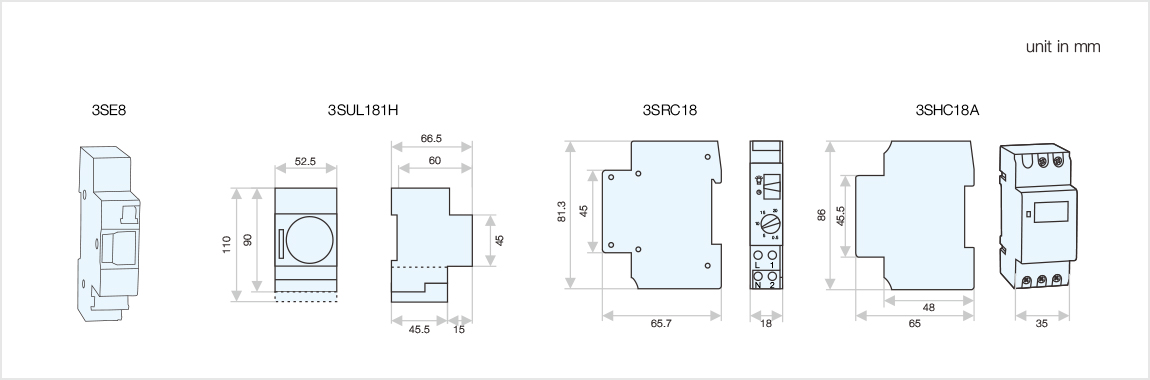

Outline and installation dimensions

3SE8&3SUL181H&-3SRC18&3SHC18A.3
