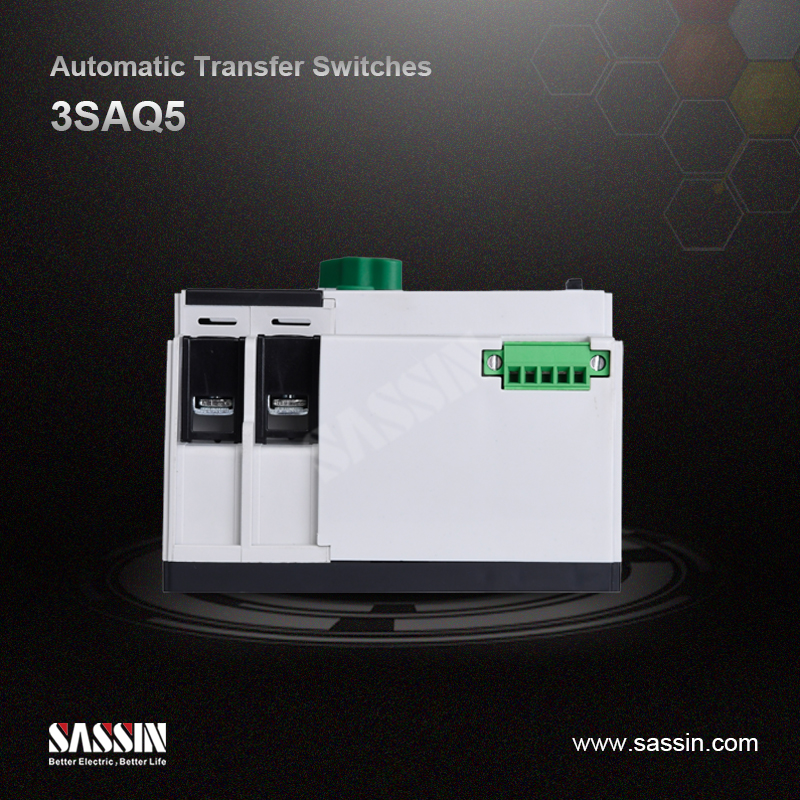

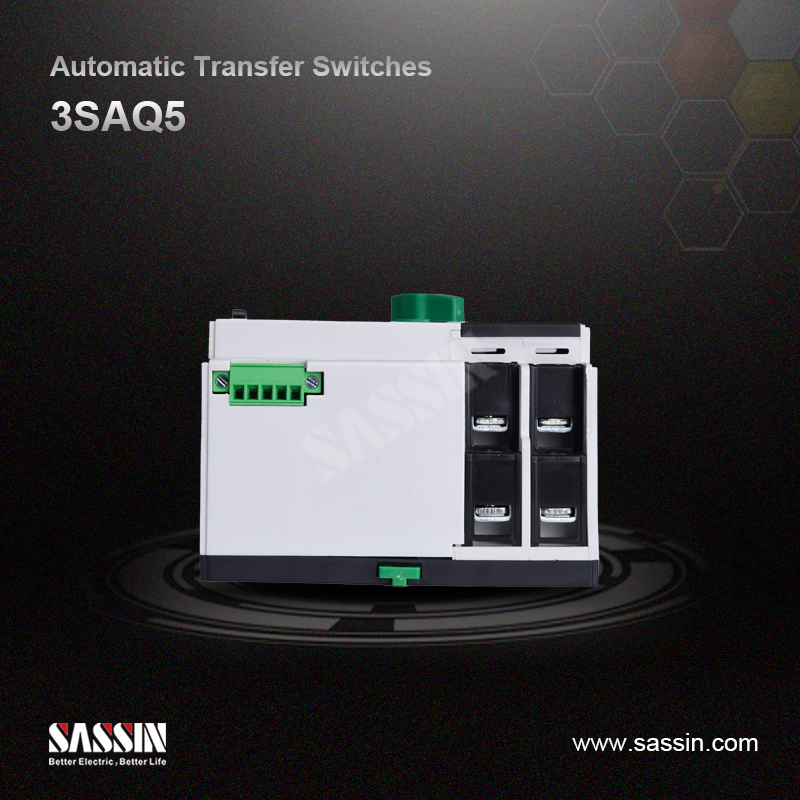

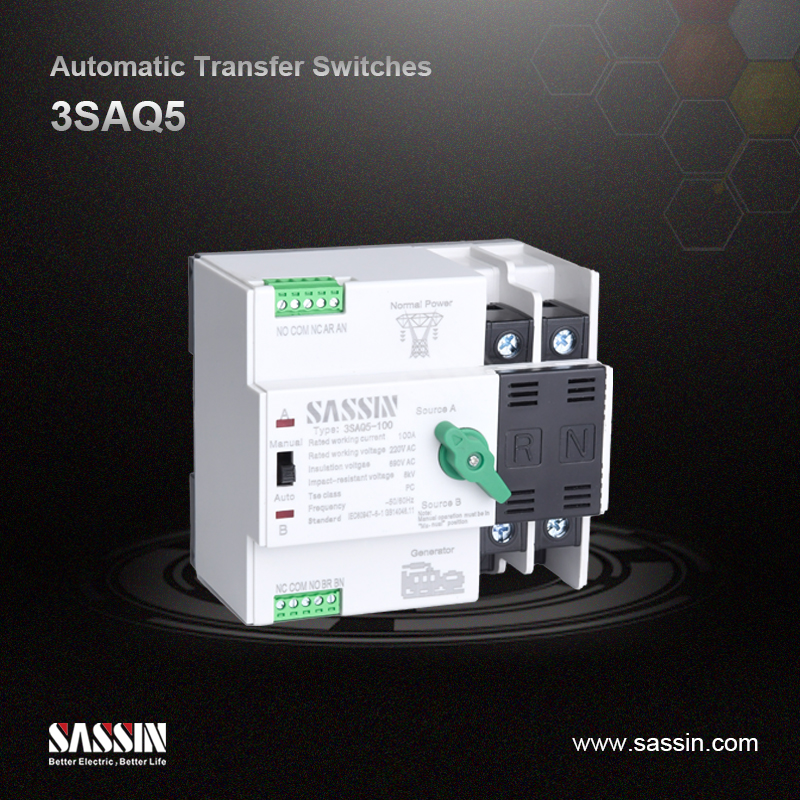

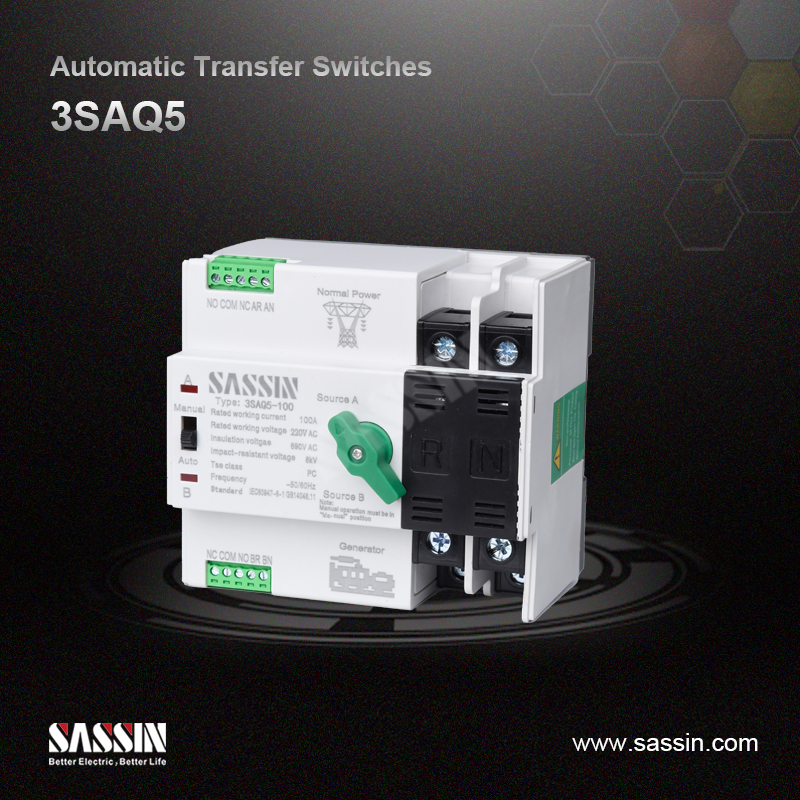

3SAQ5,CB class, up to 100 A

Standard: IEC 60947-3, IEC 60947-6-1

Current frame (A): 100 A

Rated operating current (A): 16, 20, 25, 32, 40, 50, 63, 70, 80, 100

Number of poles (P): 2, 3, 4 Rated insulation voltage Ui (V AC): 690

Rated volage Ue (V AC): 400

Use category: AC-33iB

Rated conditional short-circuit current Iq (kA): 50

SCPD (fuse): RT16-00-100A

Rated impulse withstand voltage (kA): 8

Rated control voltage Us: AC 220V, 50/60 Hz

Correct working condition 85% Us ~ 110% Us

Auxiliary circuit: AC 220V/AC 110V 50/60 Hz

Contact transfer time (ms): < 50

Operating transfer time (ms): < 50

Return transfer time (ms): < 50 Off time (ms): < 50

Electrical life (times): 2000

Mechanical life (times): 5000

Degree of protection: IP20

Ambient temperature: -5
~ 40 °C, max. 95% humidity  Altitude (Max.): 2000 m
