Technical specifications

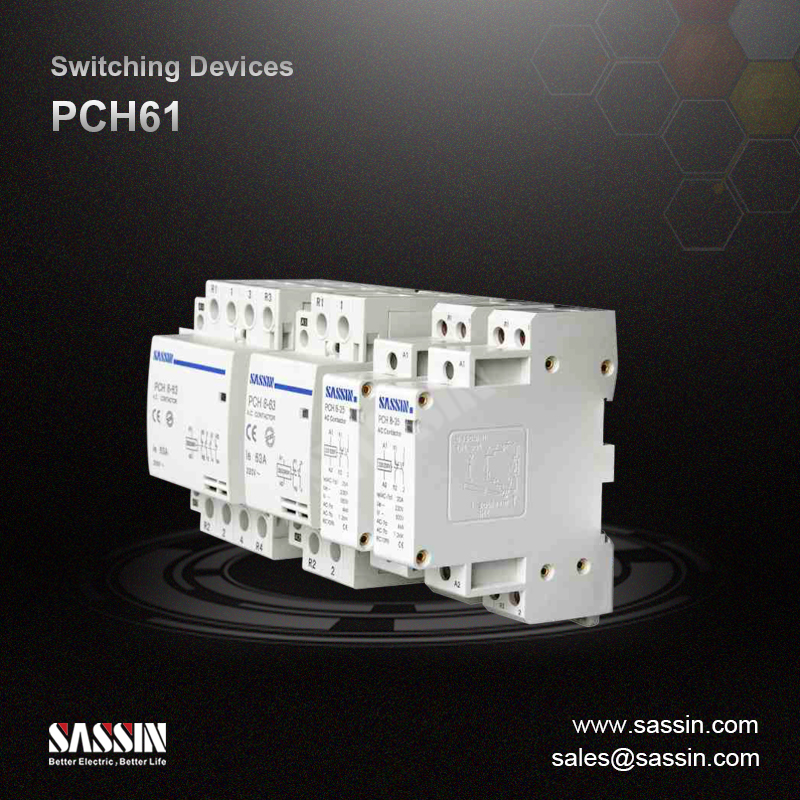

| Type | PCH6102 | PCH6106 |
| Frame current (A) | 25 | 63 |
| Standards | IEC 61095 | IEC 60947-4-1 |
| Number of poles | 2, 4 | |
| Type of current | AC | |
| Frequency (Hz) | 50/60 | |
| Rated voltage Un (V) | 230/400 | |
| Rated current In in AC-7a / Ac1 (A) | 10, 16, 20, 25 | 25, 32, 40, 63 |
| Rated current In in AC-7b / Ac1 (A) | 4, 5.5, 7, 8.5 | 8.5, 12, 15, 25 |
| Rated power in AC3 (Kw) | ||
| 230 V | 2-5 | 5-13 |
| 400 V | 6-13 | 15-40 |
| Control circuit voltage (V) | 24, 230 | |
| Mechanical life (times) | 300,000 | |
| Electrical life (times) | ||
| AC-7a / AC1 | 10,000 | 80,000 |
| AC-7b / AC1 | 50,000 | 40,000 |
| Degree of protection | IP20, with connected conductors | |
| Conductor cross-sections | ||
| Solid and stranded (mm²) | 2-25 | |
| Finely stranded with end sleeve (mm²) | 2-25 | |
| Terminals | ||
| Terminal tightening torque (N·m) | 0.8-2.4 | |
| Ambient temperature (°C) | -5 ~ +40, max. 95 % humidity | |
| Storage temperature (°C) | -40 ~ +75 | |
| Connection Capacity (mm²) | 1-25 | |
