PC61K, mini contactors, up to 5.5 kW

Independent power supply with build-in power source,directly draws power from the incoming end to avoid the risk of protection function failure caused by external power supply failure.

● Overload protection
● Short circuit protection
● Isolation
● Controlling
● Used in residential building, non-residential building, industry, energy and infrastructure
Availability:

Applications and functions for AC contactor

●   Used for controlling 3-phase motors and generally for controlling power circuits

●   Used for many other applications such as isolation, capacitor switching and lighting

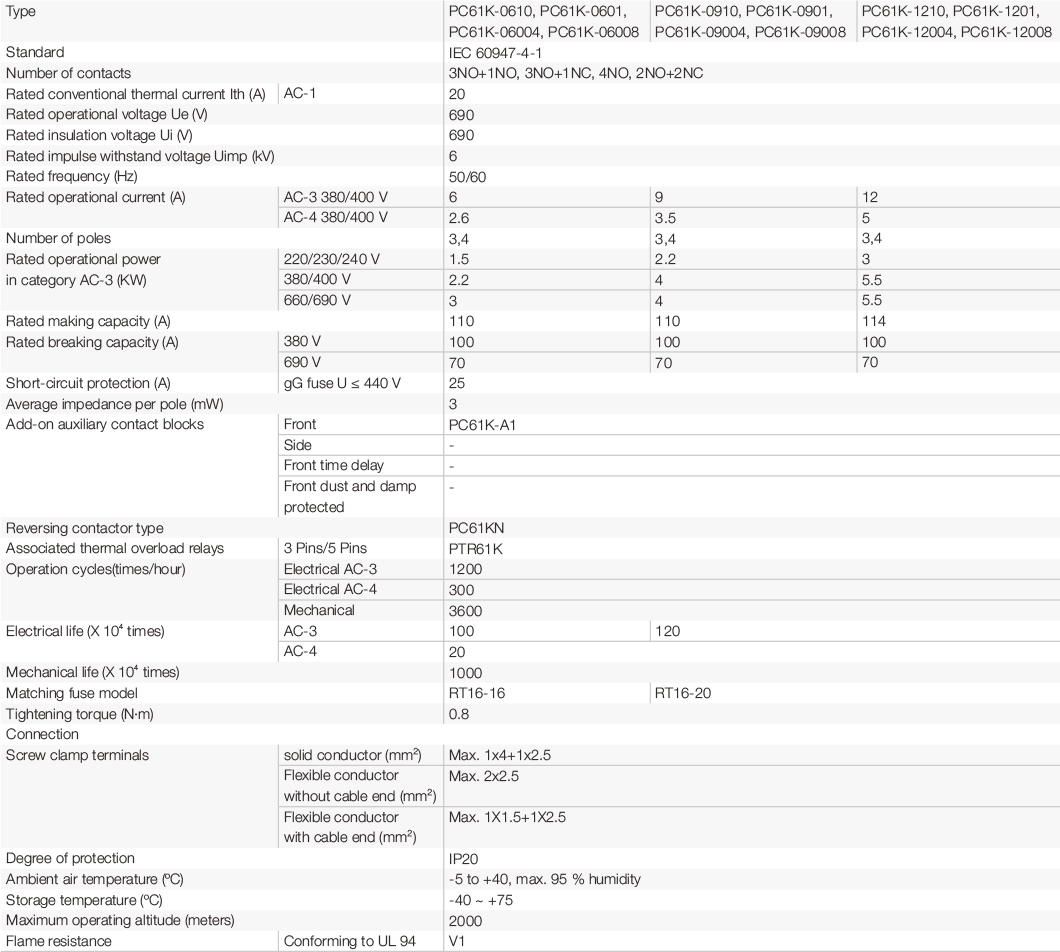

Technical specifications

PC61K.1


Technical specifications for auxiliary contact incorporated in the contactor type PC61K

●   Standard: IEC 60947-5-1

●   Number of auxiliary contact: 2, 4

●   Mounting type: Front

●   Conventional heating current (A): 10

●   Rated operational voltage Ue (V): Up to 690

●   Rated insulation voltage Ui (V): 690

●   Conventional thermal current Ith (A): 10

●   Minimum switching capacity Im (mA): 5

●   Short circuit protection (A): 10

●   Rated making capacity (A): 110

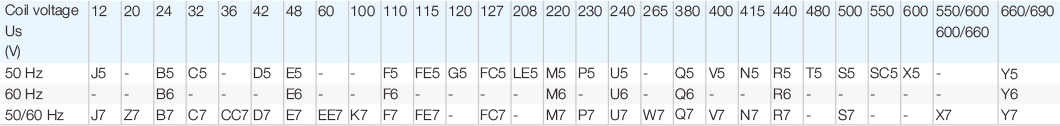

Coil voltage of contactor PC61K

PC61K.2


Selection and ordering data

Mini contactors PC61K , 3-pole, 2.2 to 5.5 kW

PC61K.3


Selection and ordering data

Mini contactors PC61K, 4-pole, 2.2 to 5.5 kW

PC61K.4


Mini reversing contactors PC61KN, 3-pole, 2.2 to 5.5 kW

PC61K.5

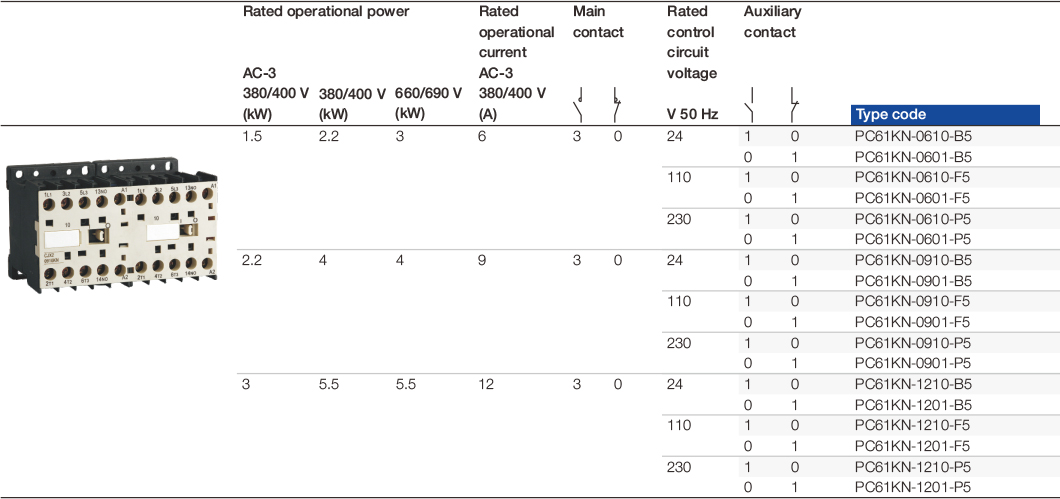

Mini reversing contactors PC61KN, 4-pole, 2.2 to 5.5 kW

PC61K.6


Selection and ordering data

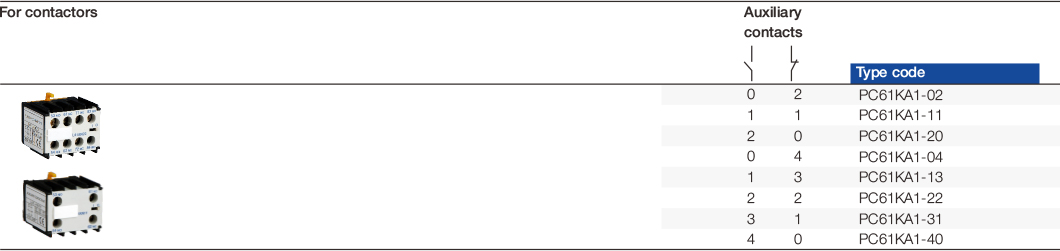

Front-mounted instantaneous auxiliary contact blocks

PC61K.7

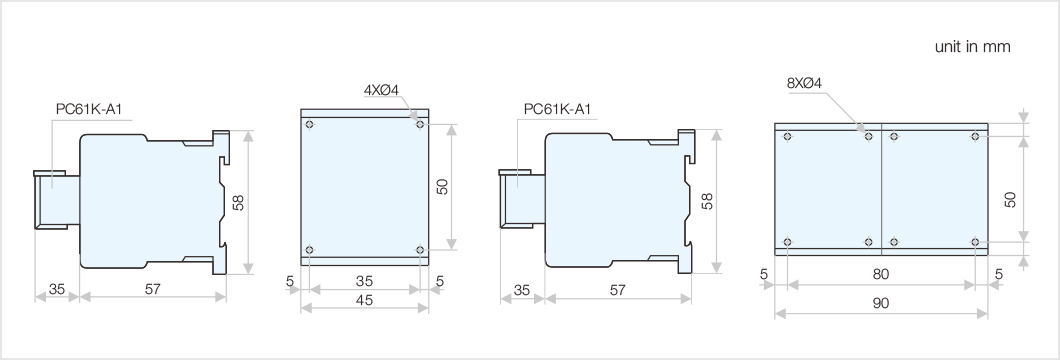

Outline and installation dimensions

PC61K.8
