PC61F, contactors, up to 400 kW

Independent power supply with build-in power source,directly draws power from the incoming end to avoid the risk of protection function failure caused by external power supply failure.

● Overload protection
● Short circuit protection
● Isolation
● Controlling
● Used in residential building, non-residential building, industry, energy and infrastructure
Availability:
Inquire Add to Basket

Applications and functions for AC contactor PC61F

●   Used for controlling 3-phase motors and generally for controlling power circuits

●   Used for many other applications such as isolation, capacitor switching and lighting

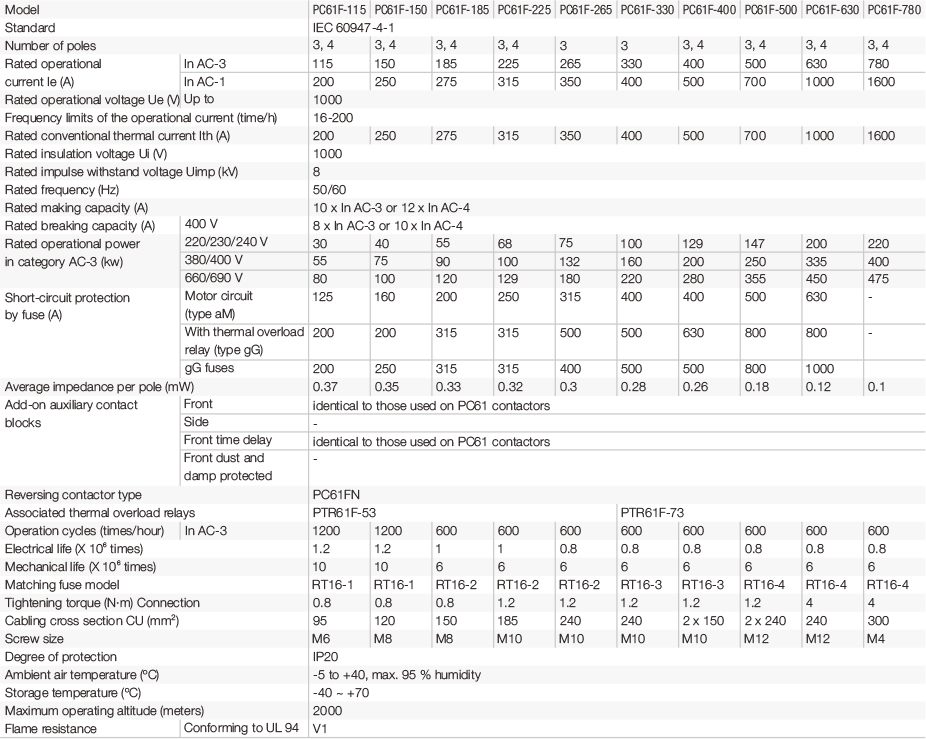

Technical specifications for contactor PC61F

PC61F.1


Selection and ordering data

PC61F.2


Selection and ordering data

PC61F.3
