PC61, contactors, up to 45 kW

Independent power supply with build-in power source,directly draws power from the incoming end to avoid the risk of protection function failure caused by external power supply failure.

● Overload protection
● Short circuit protection
● Isolation
● Controlling
● Used in residential building, non-residential building, industry, energy and infrastructure
Availability:

Applications and functions

●   Used for controlling 3-phase motors and generally for controlling power circuits

●   Used for many other applications such as isolating, capacitor switching and lighting


Technical specifications for type PC61

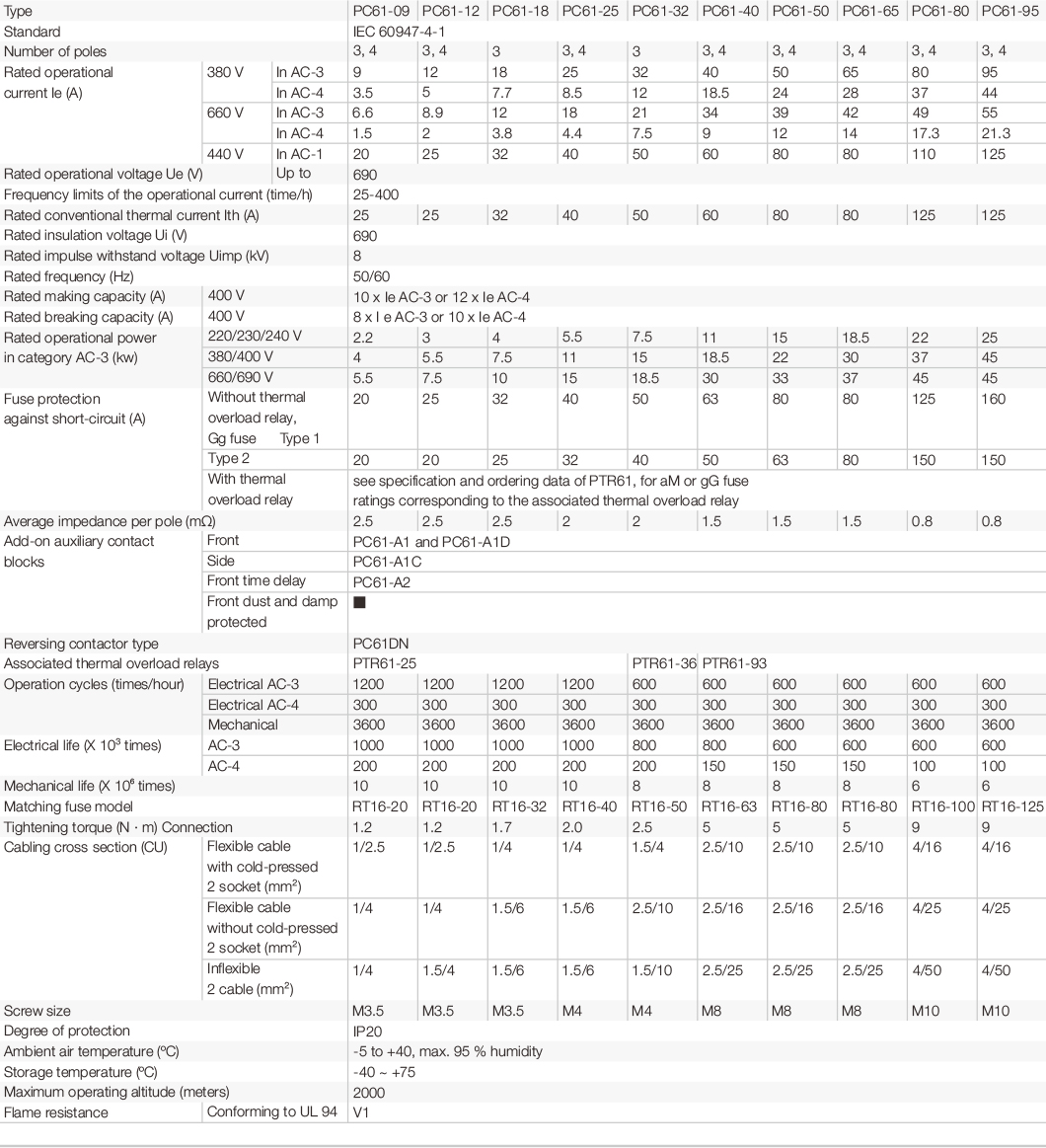

PC61.1


Technical specifications for auxiliary contacts PC61-A1/A1D/A1C

●   Standard: IEC 60947-5-1

●   Number of auxiliary contacts: 2, 4

●   Mounting type: Front, side

●   Conventional heating current (A): 10

●   Rated operational voltage Ue (V): Up to 690

●   Rated insulation voltage Ui (V): 690

●   Conventional thermal current Ith (A): 10

●   Minimum switching capacity Imin (mA): 5

●   Short circuit protection (A): gG fuse: 10 A

●   Rated making capacity (A): 140


Technical specifications for time delay contact PC61-A2/A3

●   Standard: IEC 60255-5

●   Number of contacts: 2

●   Mounting type: Front

●   Delay time type making time delay, breaking time delay

●   Timing ranges: 0.1-3, 0.1-30, 10-180

●   Repeat accuracy: ± 3 % (10 ms minimum)

●   Reset time

●   During time delay period (ms): 150

●   After time delay period (ms): 50

●   Conventional heating current (A): 10

●   Rated operational voltage Ue (V): Up to 690

●   Rated insulation voltage Ui (V): 250

●   Conventional thermal current Ith (A): 10


Voltage and frequency for coil PC61-D2/D4/D6

PC61.2


Technical specifications for coil PC61-D2/D4/D6

PC61.3


Selection and ordering data

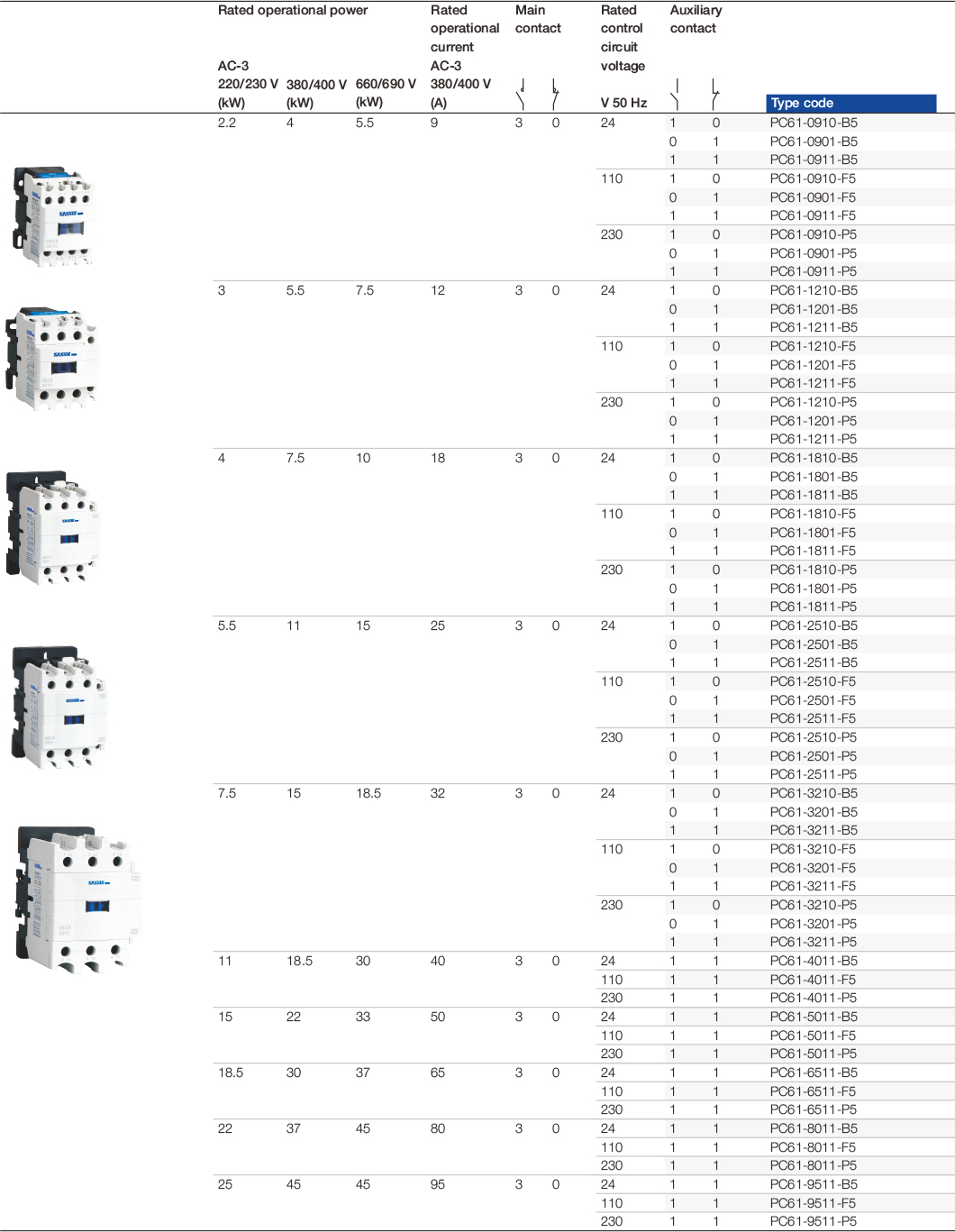

AC contactors?PC61, 3-pole, 4 to 45 kW

PC61.4


Selection and ordering data

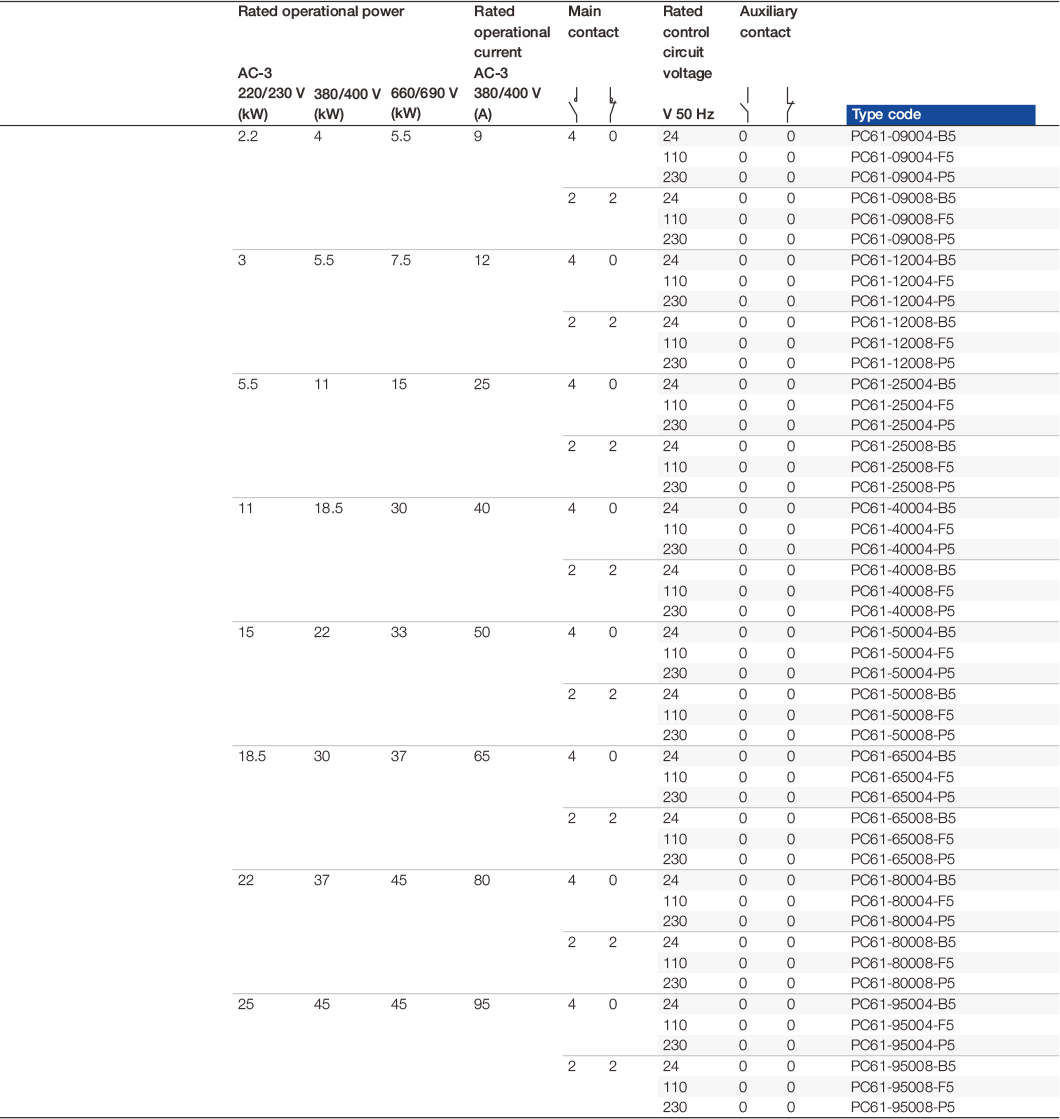

AC contactors?PC61, 4-pole, 4 to 45 kW

PC61.5


Selection and ordering data

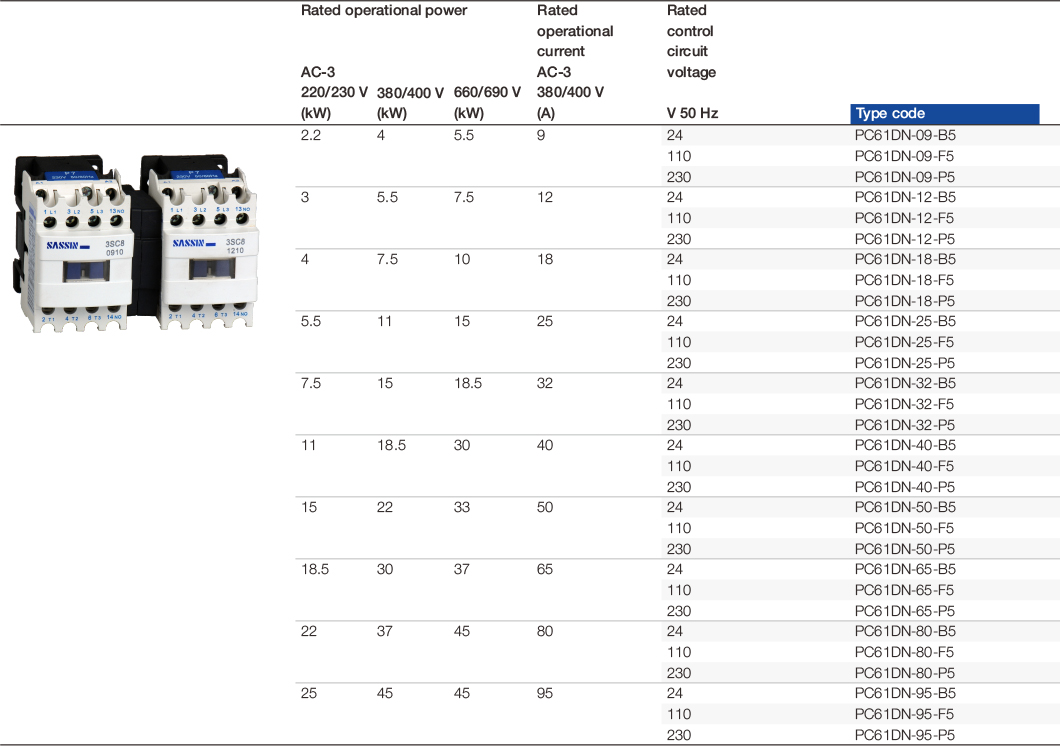

Reversing contactors PC61DN, 4 to 45 kW

PC61.6


Selection and ordering data

Instantaneous auxiliary contact blocks

PC61.7

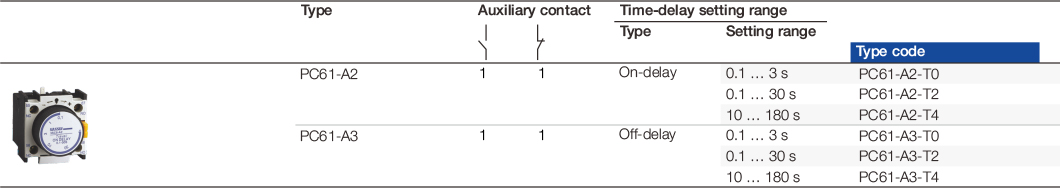

Time-delay auxiliary contact blocks

PC61.8

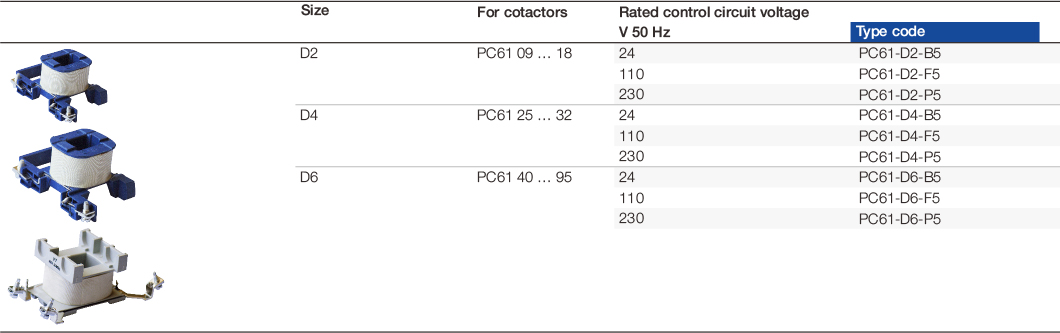

Coils

PC61.9

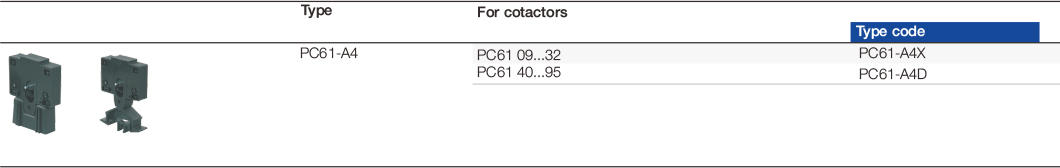

Mechanica interlock for inversing contactors

PC61.10

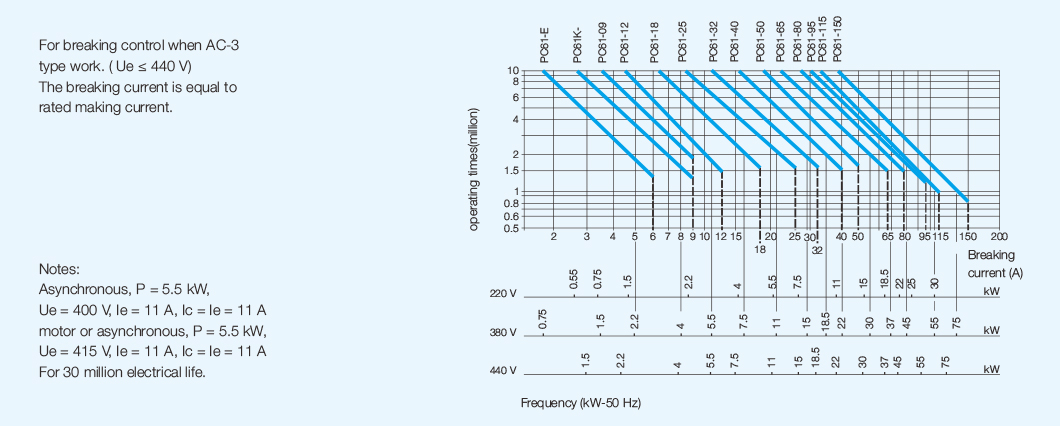

Electrical life curve for AC contactor PC61

PC61.11

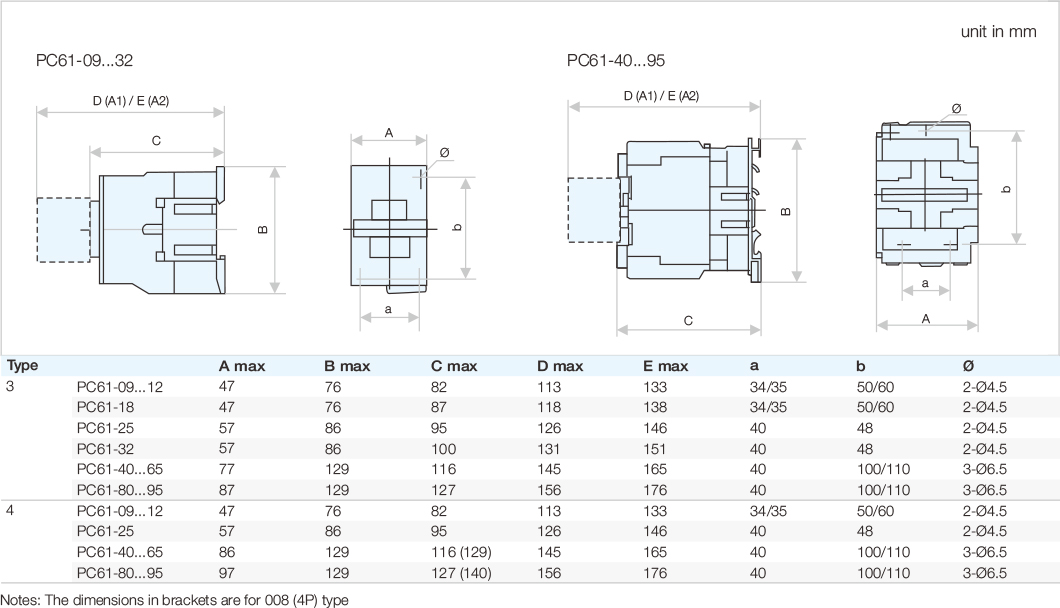

Outline and installation dimensions

PC61.12
