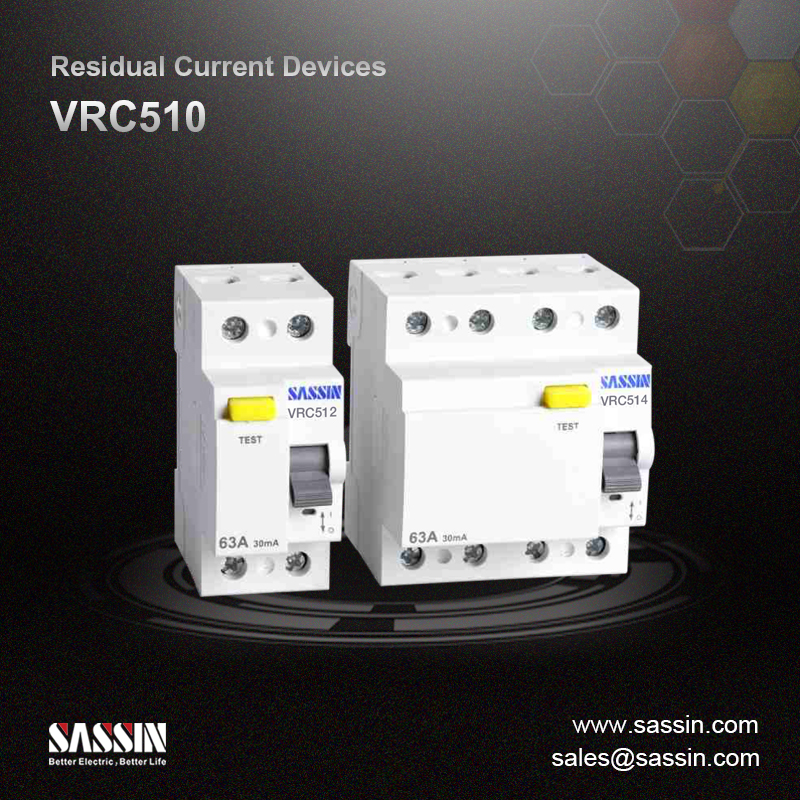

RCCB, VRC510, up to 100 A

• Switching and isolation function

• Controlling

• Protection against the effects of sinusoidal alternating earth fault currents

• Protection against indirect contacts and additional protection against direct contacts.

• Protection against fire hazard caused by insulation faults

• Used in residential building , non-residential building, energy sources, industry and infrastructure.

• Anti false wiring design to ensure safe wiring

Technical specifications

• Standard: IEC 61008-1 (AC type / A type), IEC 62643 (B type)

• Type (wave form of the earth leakage sensed): AC, A, B

• Trip time type: instantaneous, selectivity S

• Number of poles (P): 1P+N, 3P+N

• Rated current In (A): 10, 16, 25, 40, 63, 80, 100

• Rated voltage Ue (V AC): 2P: 230; 4P: 380

• Rated insulation voltage Ui (V AC): 500

• Rated frequency Fn (Hz): 50/60

• Rated residual currents IΔn (mA): 10, 30, 100, 300

• Rated conditional short-circuit current:

• Inc = IΔc = 6000 A SCPD fuse 100 A Gg

• Making and breaking capacity for VRC5-63 Im (A): 630

• Making and breaking capacity for VRC5-100 Im (A): 1000

• Rated residual breaking capacity IΔm (A): 1000

• Degree of protection: IP20, with connected conductors

• Conductor cross-section

• Solid and stranded (mm²): 1-35

• Finely stranded with end sleeve (mm²): 1-25

• Electrical endurance (Cycles): 4,000

• Mechanical endurance (Cycles): 10,000

• Fire resistance according to IEC 60695: 960 ºC

• Mounting position: Any

• Busbar connection: Pin type

• Terminal tightening torque (N·m): 2.5

• Ambient temperature (°C): -5 ~ +40, max. 95 % humidity

Features

• Electromagnetic type, voltage independent.

• The handle being sealable or equipped with padlock bracket avoids dangerous operation changes (ON / OFF)

• Adequate printing of all data on the front provides long-term identification
